Listing ID 7905
2018 Ligier JS F4
Description & Specifications
Ligier JS F4 ā Ligier Automotive. Originally called Crawford F4, this F4 single-seater was selected by the FIA and SCCA Pro Racing to be the exclusive model in the F4 U.S. Championship since 2016. ItsĀ carbon fibre chassis combines speed and safety.
Chassis and Bodywork
- 2016 F4 Spec. Carbon Composite Monocoque
- Front and Rear Roll-Over Structure
- Anti-Intrusion Side Panels
- Lightweight Composite Bodywork
- Adjustable Wings Front and Rear
Dimensions and Weight
- Width: 1750 mm / 69ā³
- Wheelbase: 2745 mm / 108ā³
- Weight: 570 kg / 1254 lbs
Suspension
- Double Wishbone Front and Rear
- Pushrod Adjustable Ride
- Adjustable Anti-Roll Bars
Engine (for the F4 US Championship)
- Honda 2.0 Liter 160 bhp
Gearbox
- Sadev 6-Speed Sequential
- Tripod CV Joints
- Pneumatic Paddle Shift
Fuel System
- ATL Single 13 US Gallon Fuel Tank
- Electrical Pick Up Pump in Tank
Steering
- Rack and Pinion Steering
- Quick Release Steering Wheel
- Height Adjustable Column
- Safety Collapsible Steering Column
Shocks
- JRI 2-Way Adjustable Dampers
- Coil Over Dampers
Brakes
- 2 Pot Calipers
- Tilton Adjustable Pedal Box for Position
- Cockpit Adjustable Brake Bias
- Accessible Fluid Reservoirs
Electronics
- GEMS Performance Electronics
- LDS3R Display
Safety
- FIA Spec. 6-Point Harness
- Front Anti-Intrusion Panels
- On-Board Fire Suppression System
- HANS Compatible Headrest
- Nosebox Crash Structure
- Rear Attenuator
- 6KJ Wheel Tethers
Modifications
History

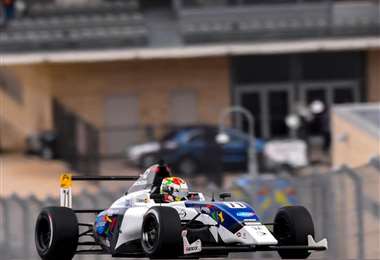

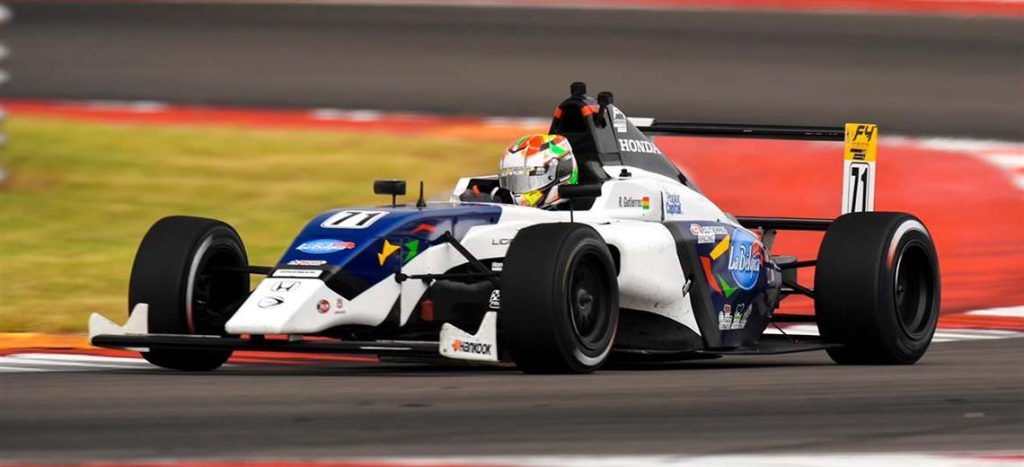

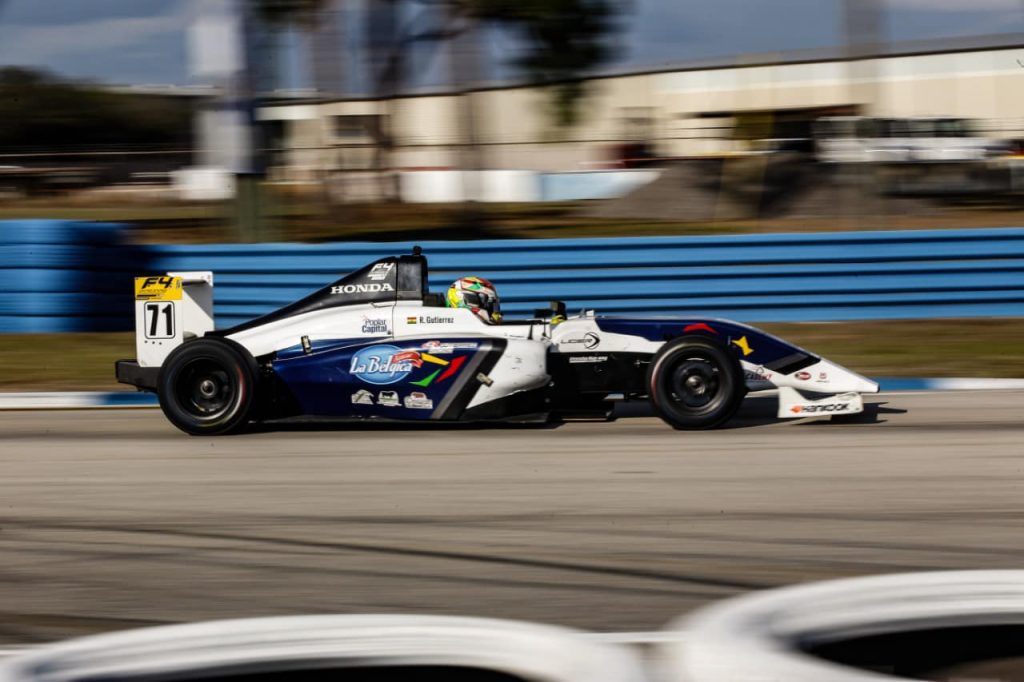

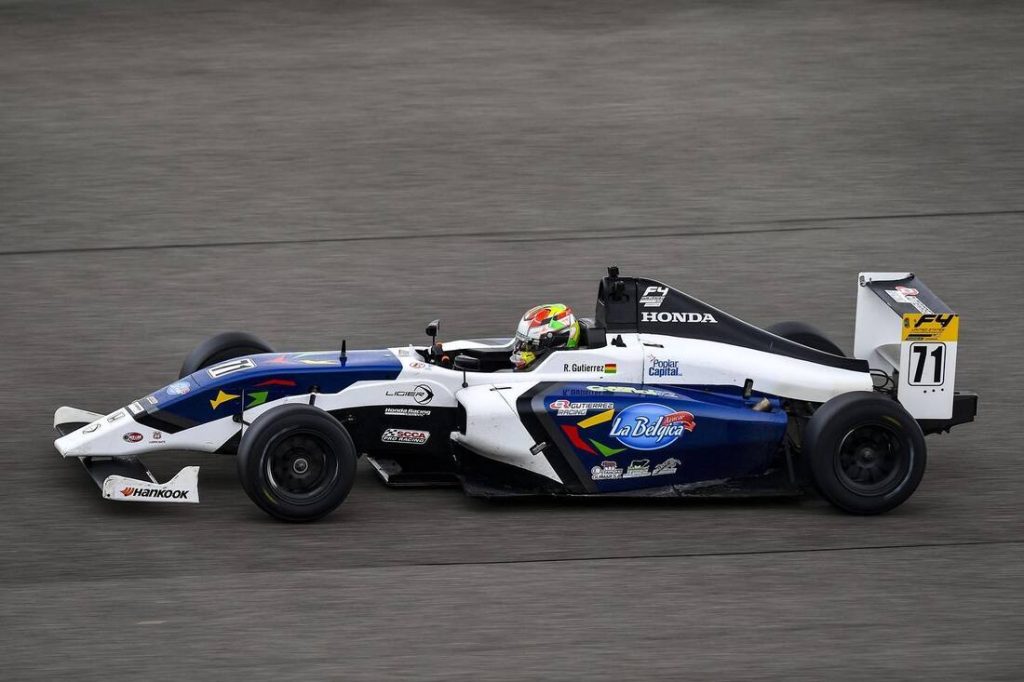

The car was most recently raced by Rodrigo Gutierrez for the last 3 years in the F4 US Series. It was campaigned by championship winners DC AutoSport w/ Cape Motorsports. Rodrigo finished on the podium with the car at Brainerd and then skipped the next two rounds before returning for the finale at COTA. So the car has great history and been fast up front.
The car is fully up to date with all series spec’d seals and such. The gearbox is fresh and rebuilt.
Current Issues
None
Seller Notes
Eligible Race Classes:
- FPUSA (F4)
- SCCA Pro (F4)
- SCCA (F4, FX)
- NASA Test/Track Days
- USF Juniors
- F4 Juniors
- FRP
- Tremendous car for country club track members etc.
