Listing ID 9987

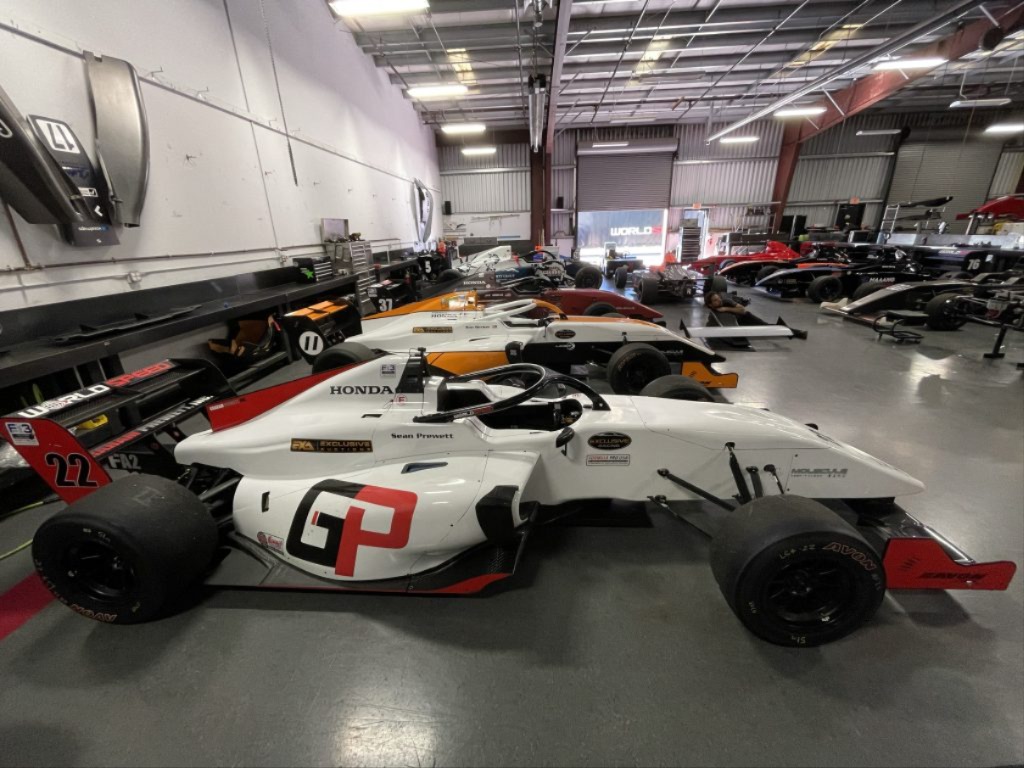

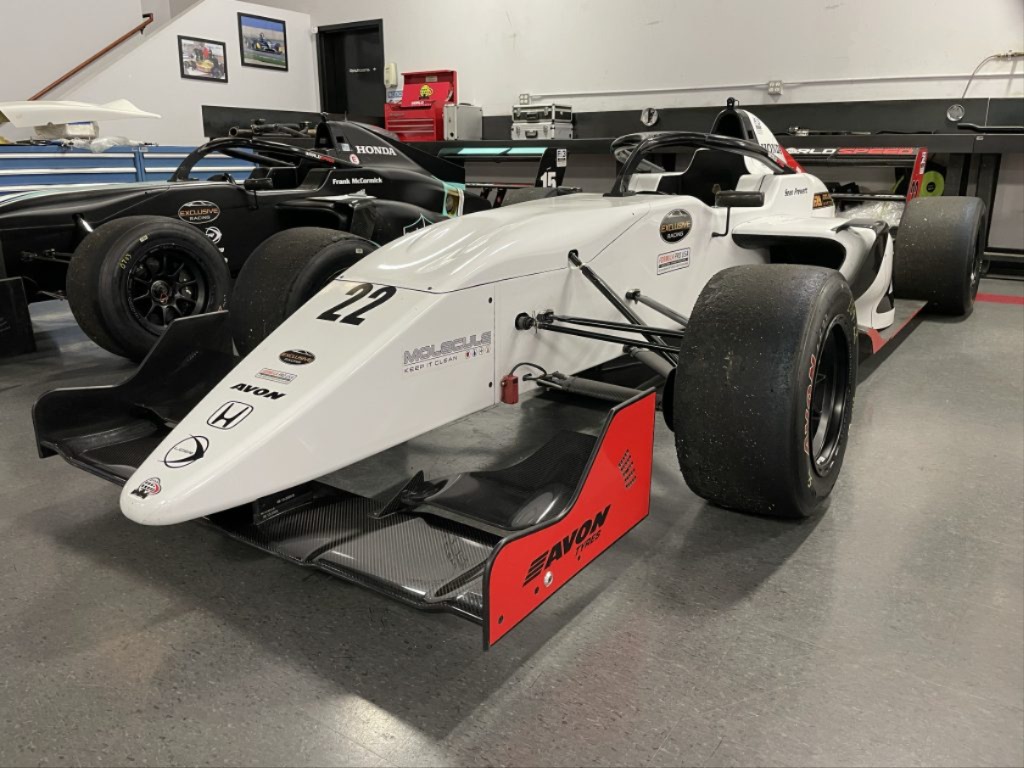

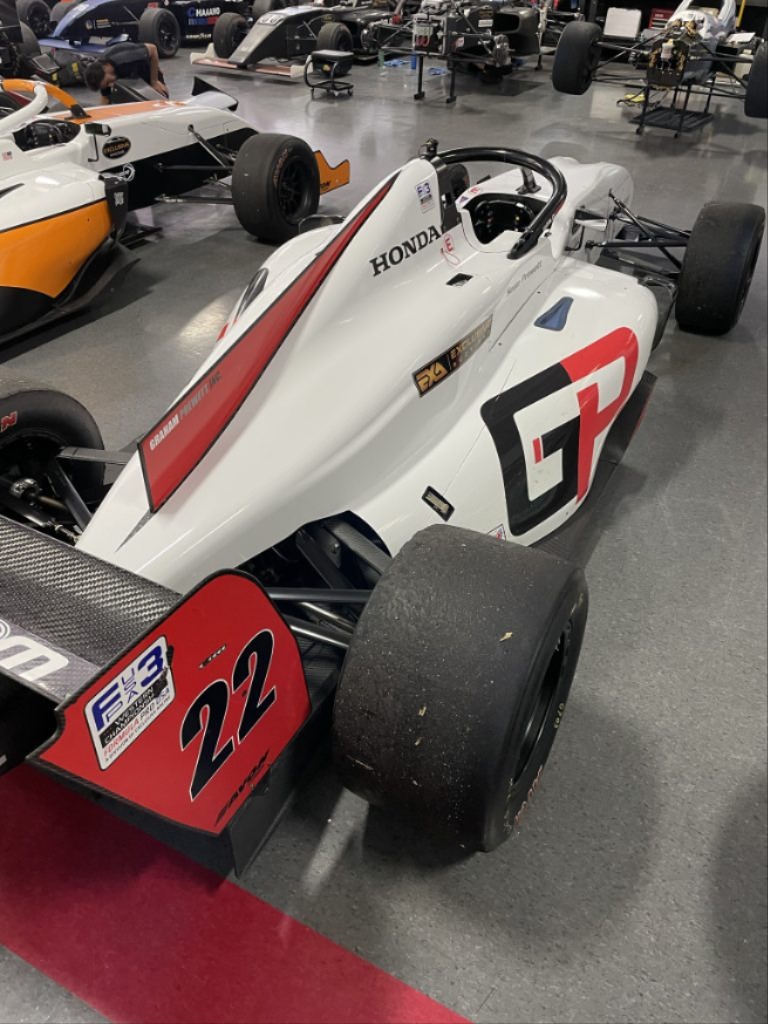

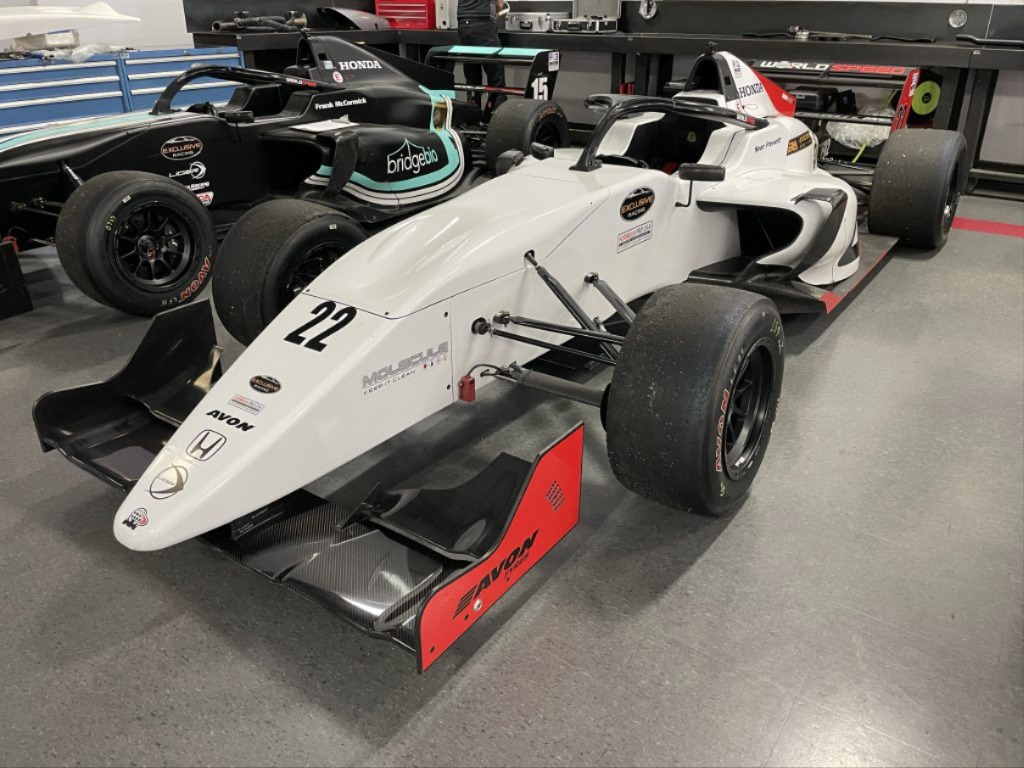

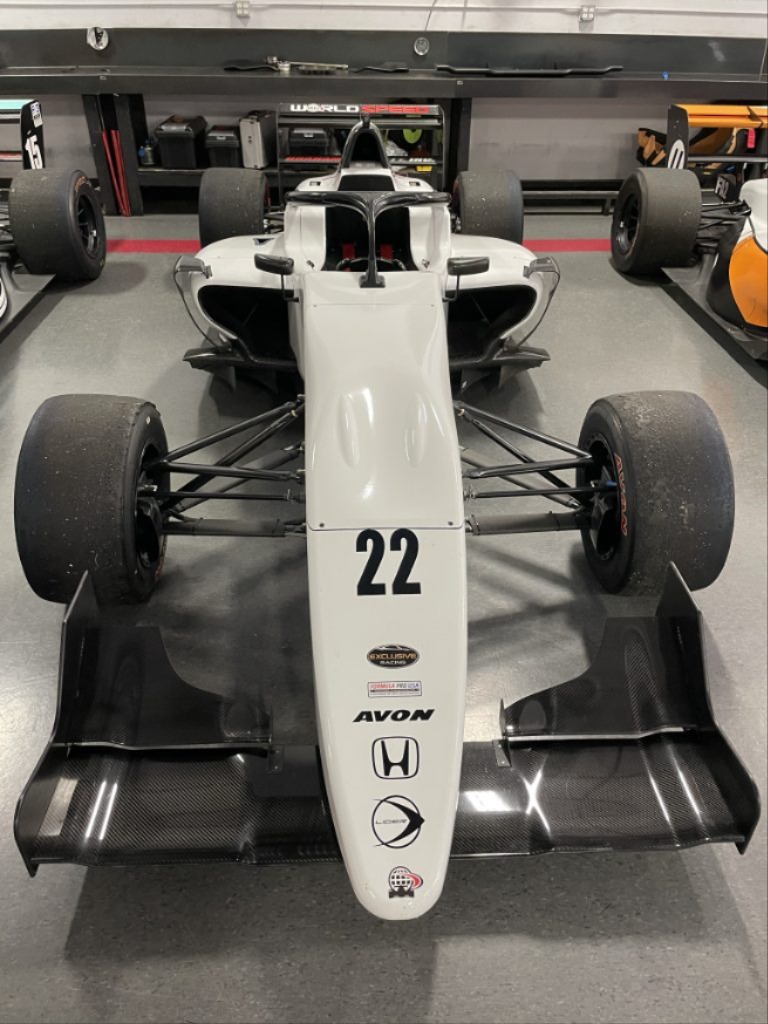

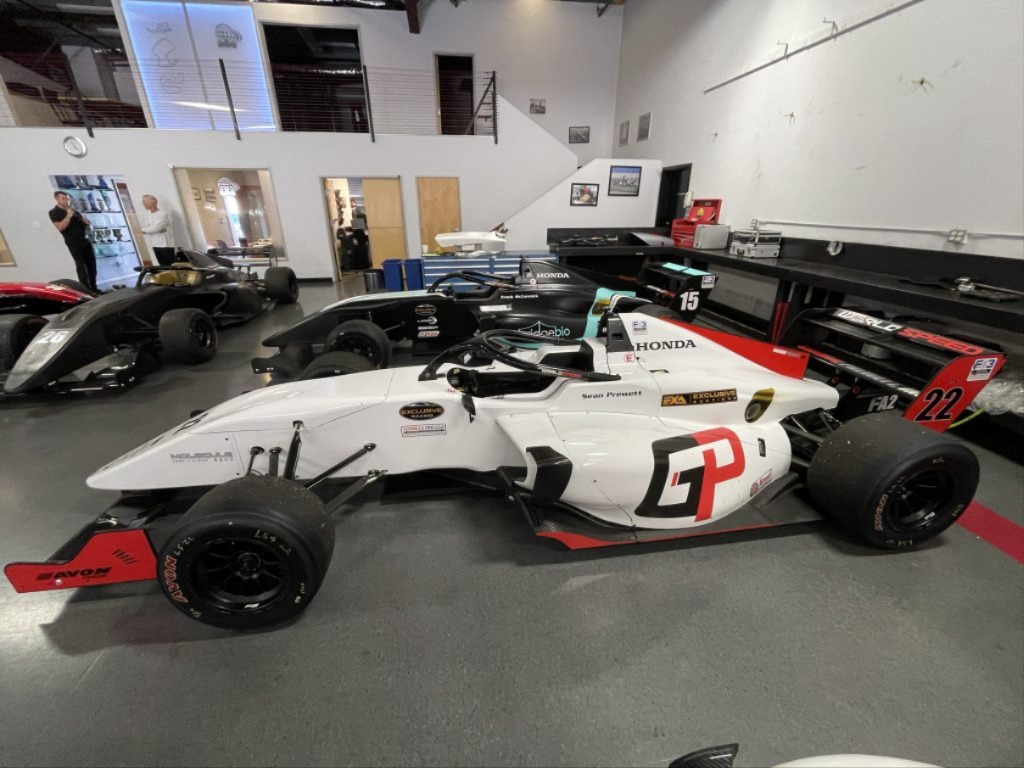

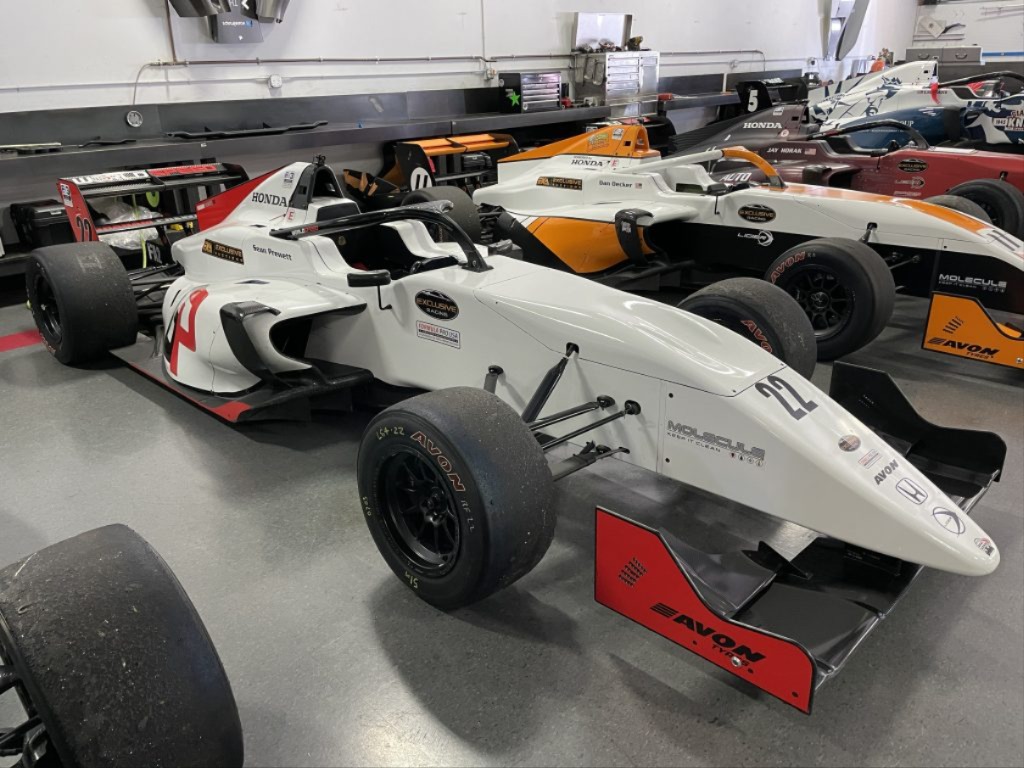

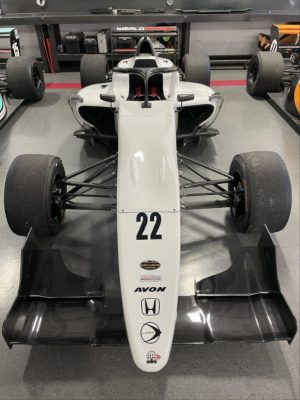

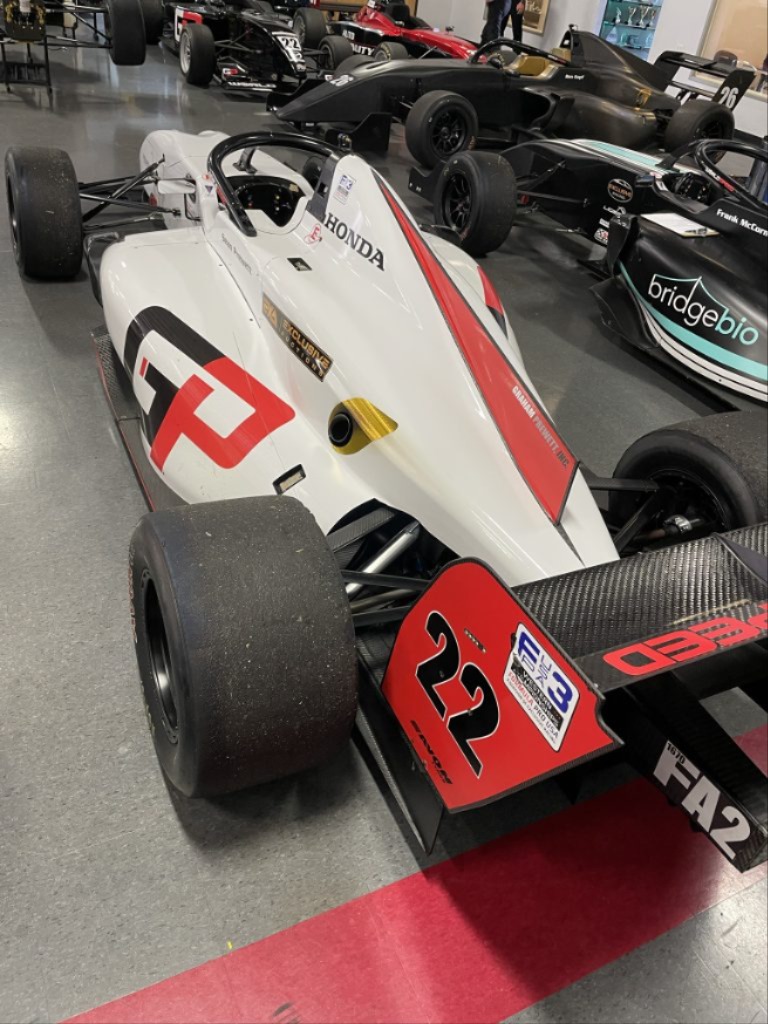

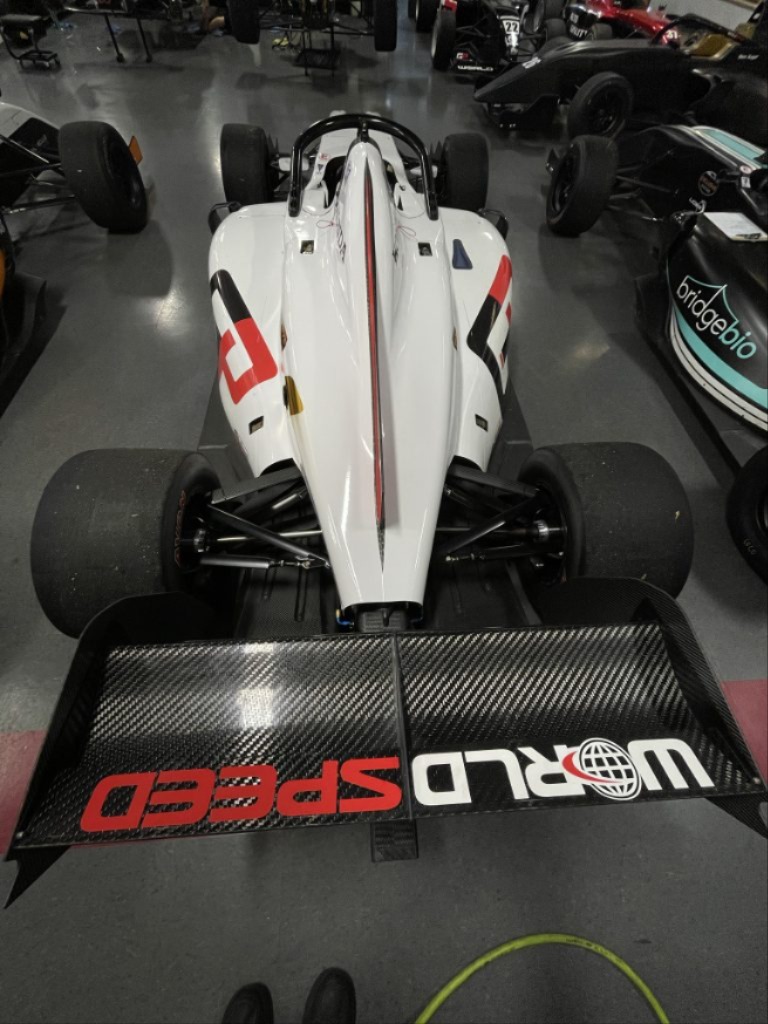

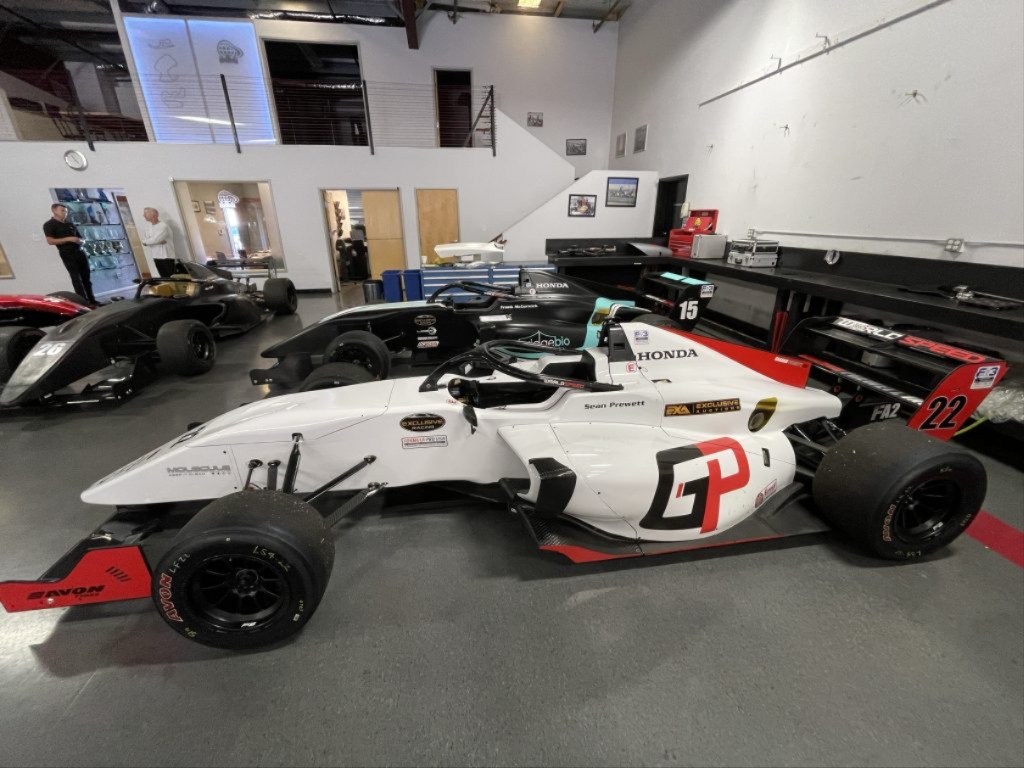

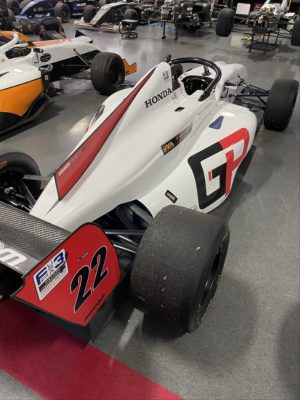

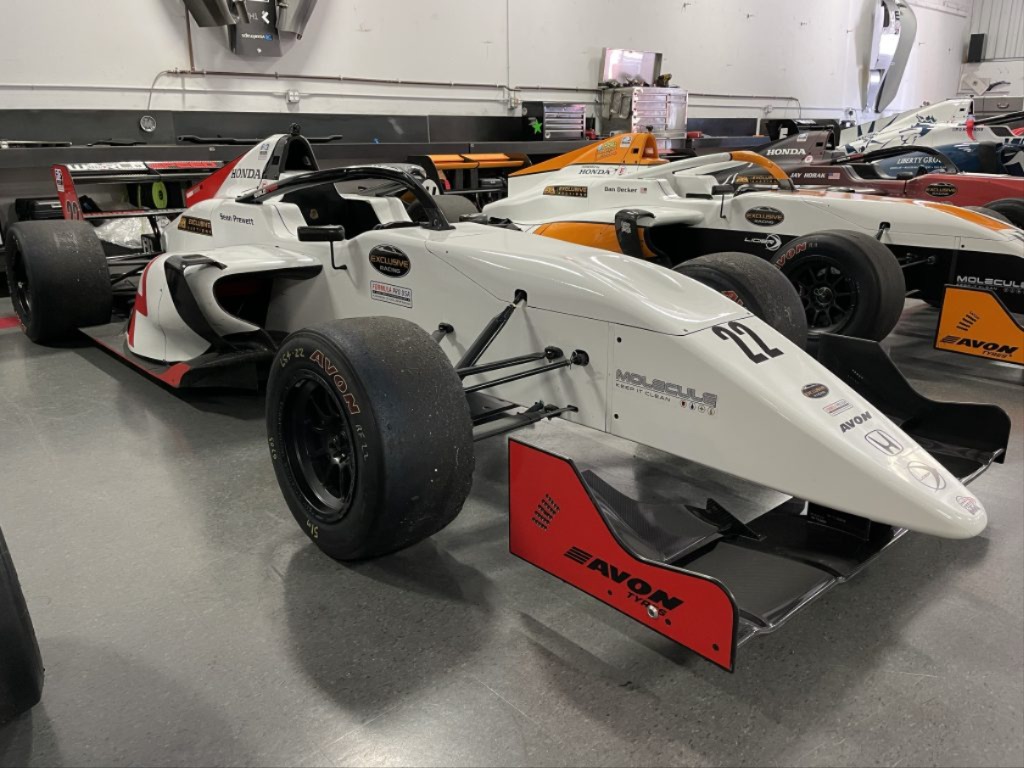

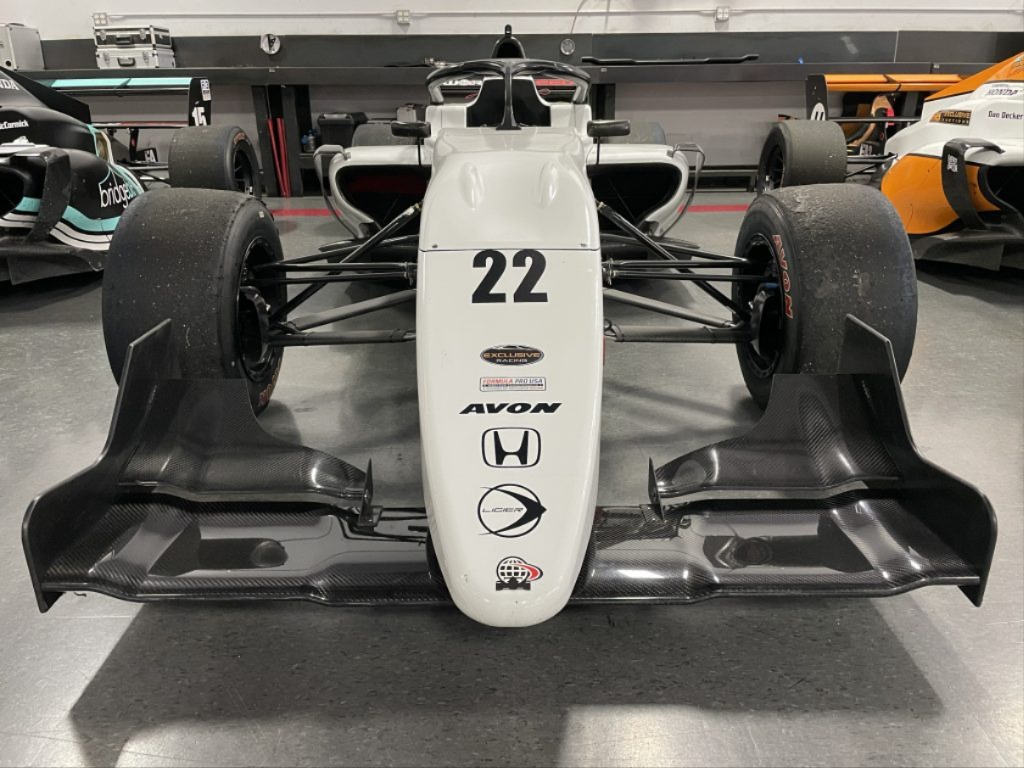

2019 Ligier JS F3
Description & Specifications
CHASSIS & BODYWORK

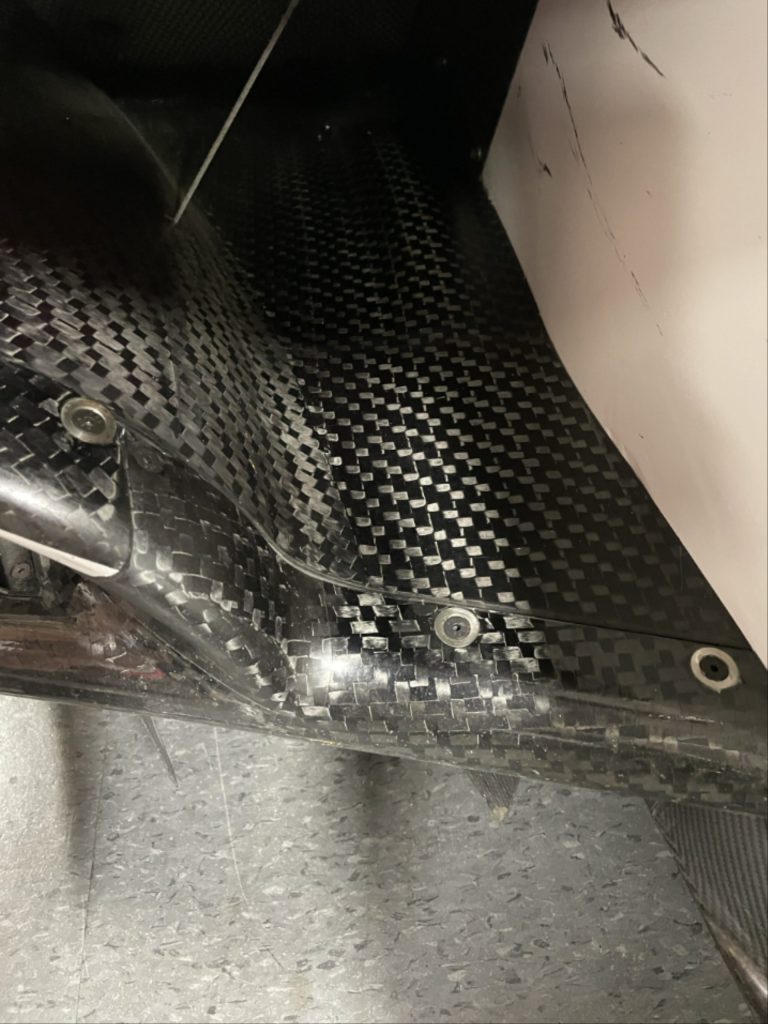

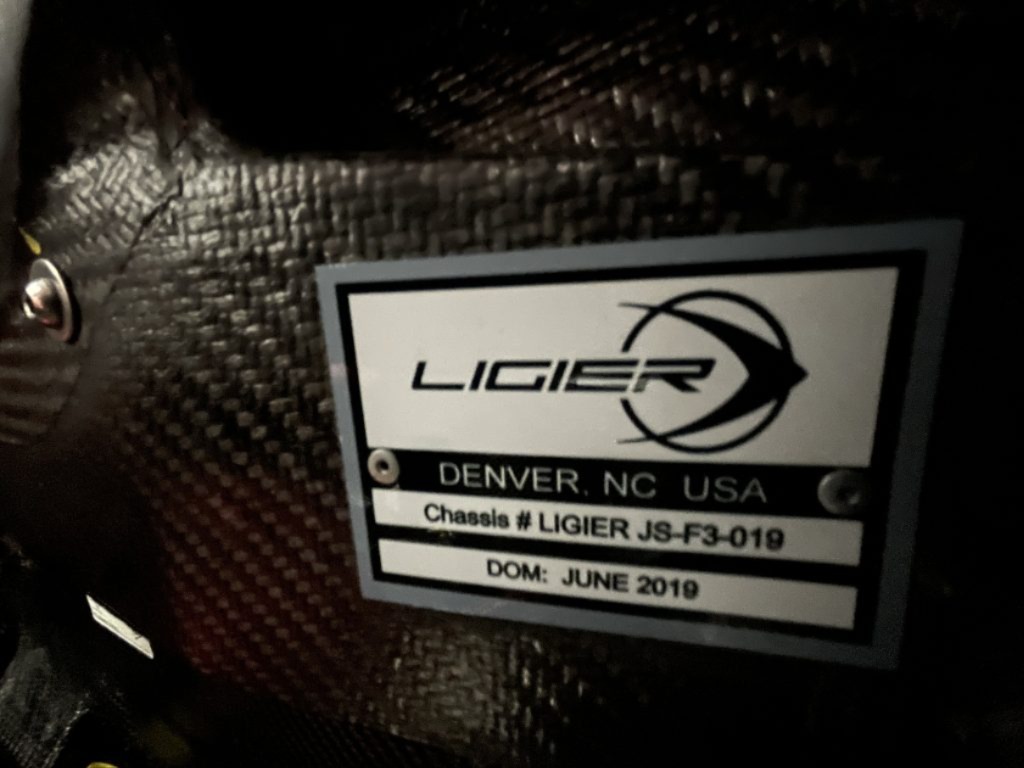

- Carbon composite monocoque FIA F3 Specifications

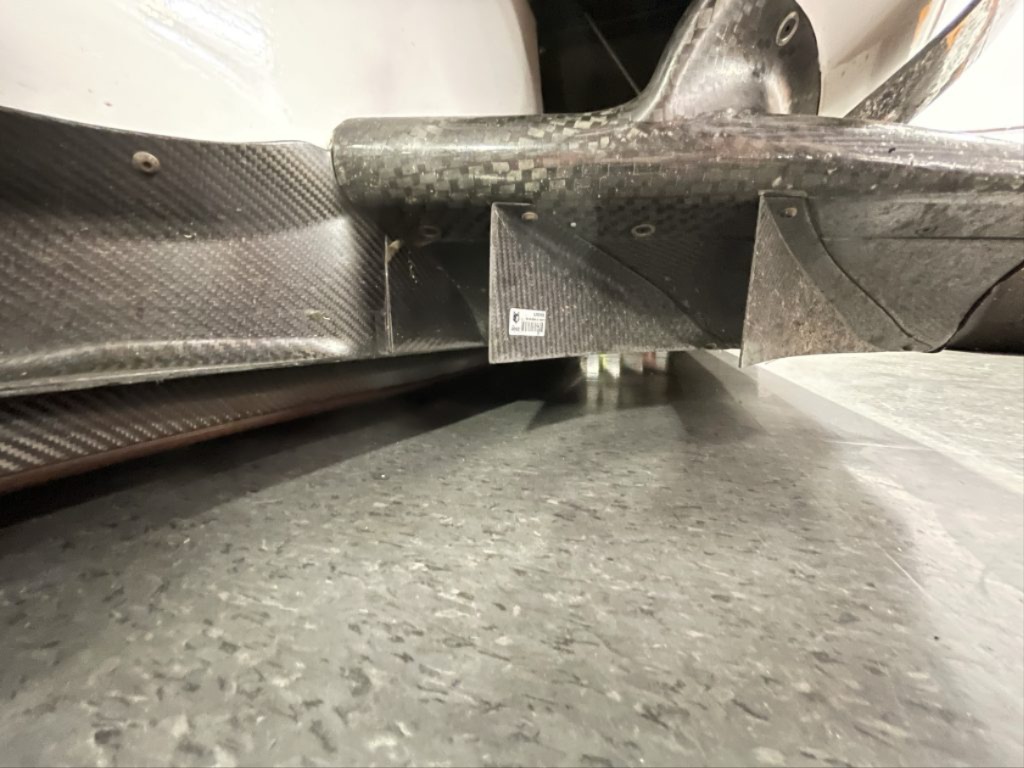

- FIA F3 tech. reg. Composite bodywork
- Full 2018 FIA safety compliant
DIMENSIONS & WEIGHT
- Length: 4895,5 mm
- Width: 1850 mm
- Wheelbase: 2920 mm
- Weight: 650 kg

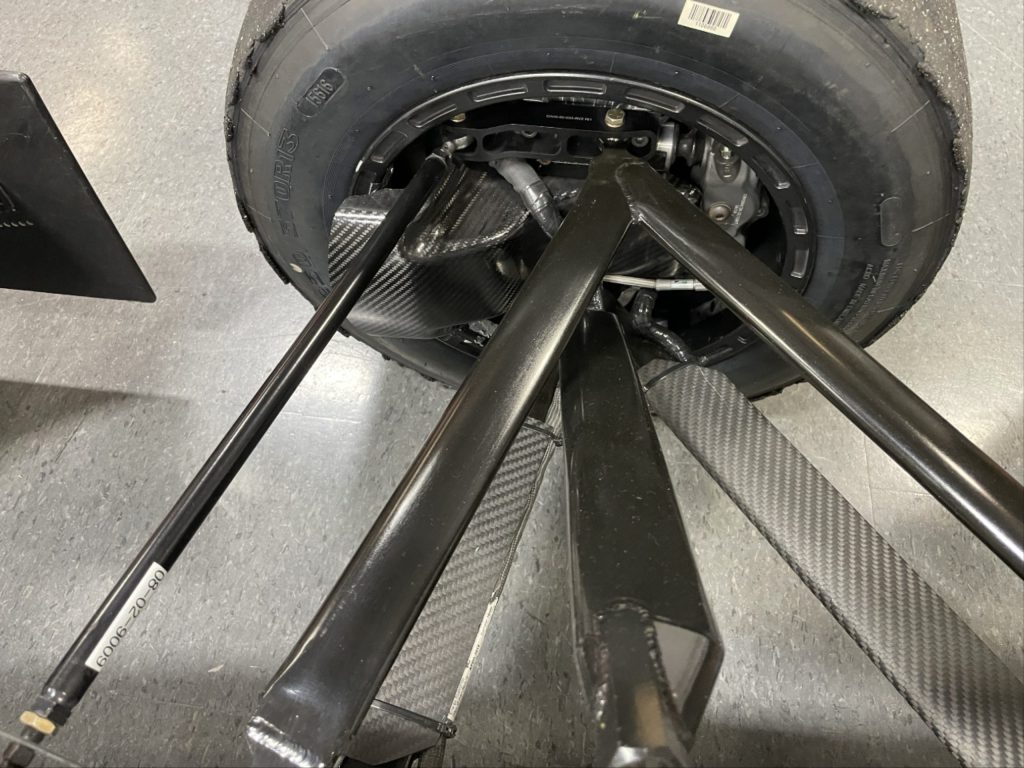

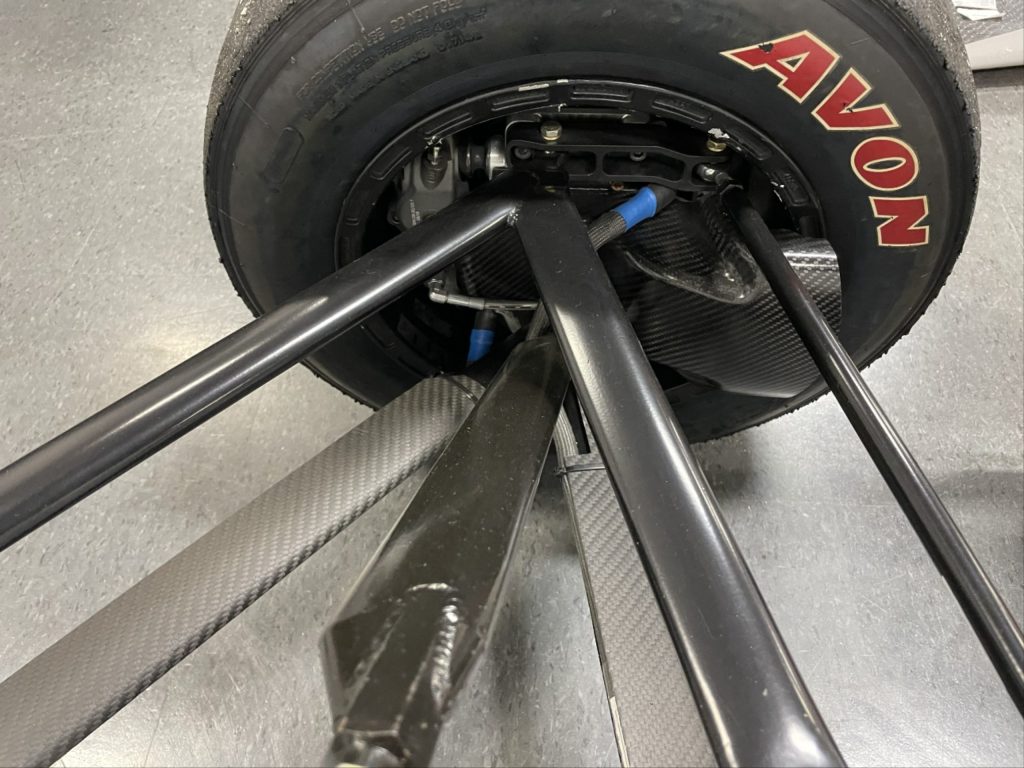

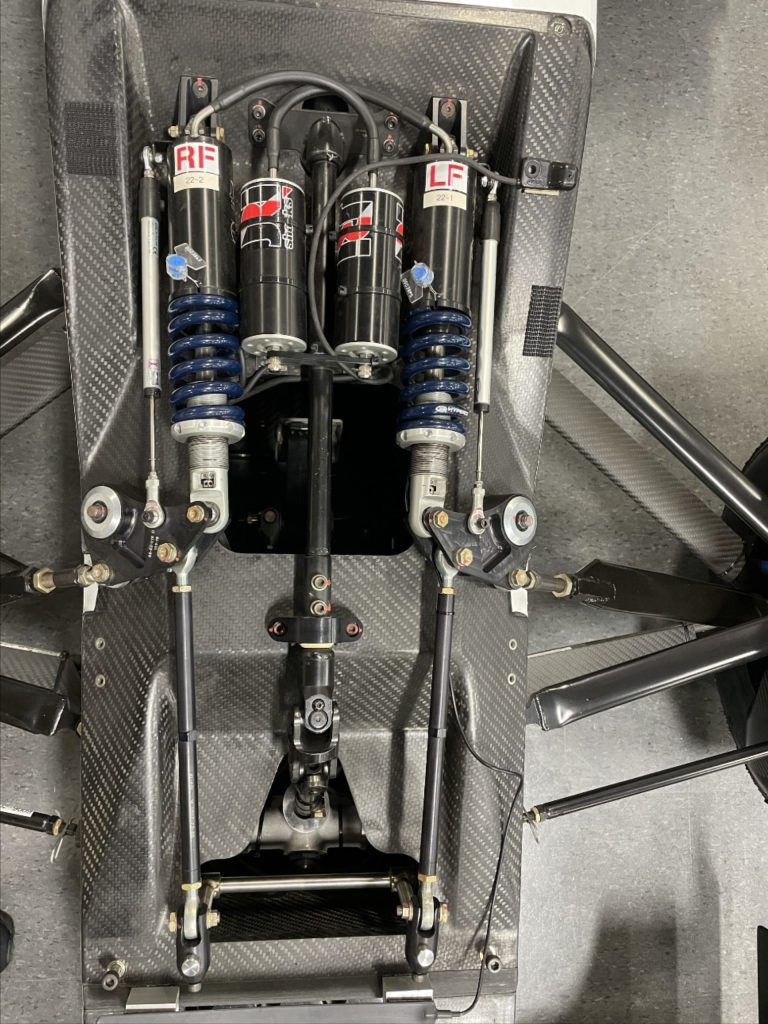

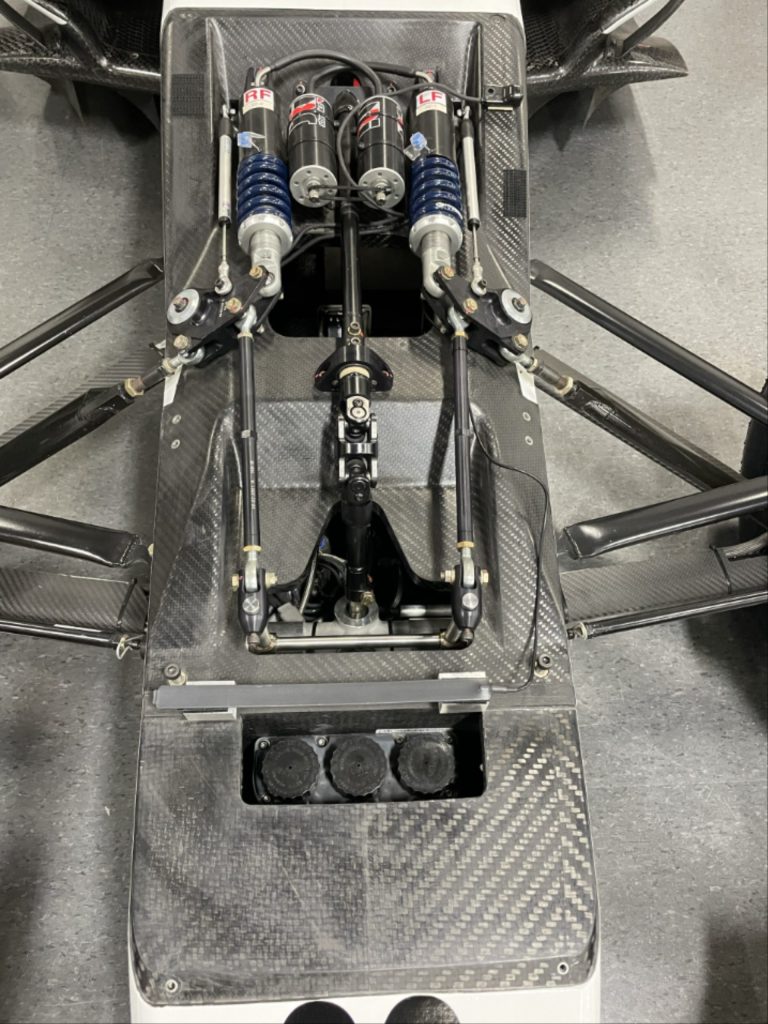

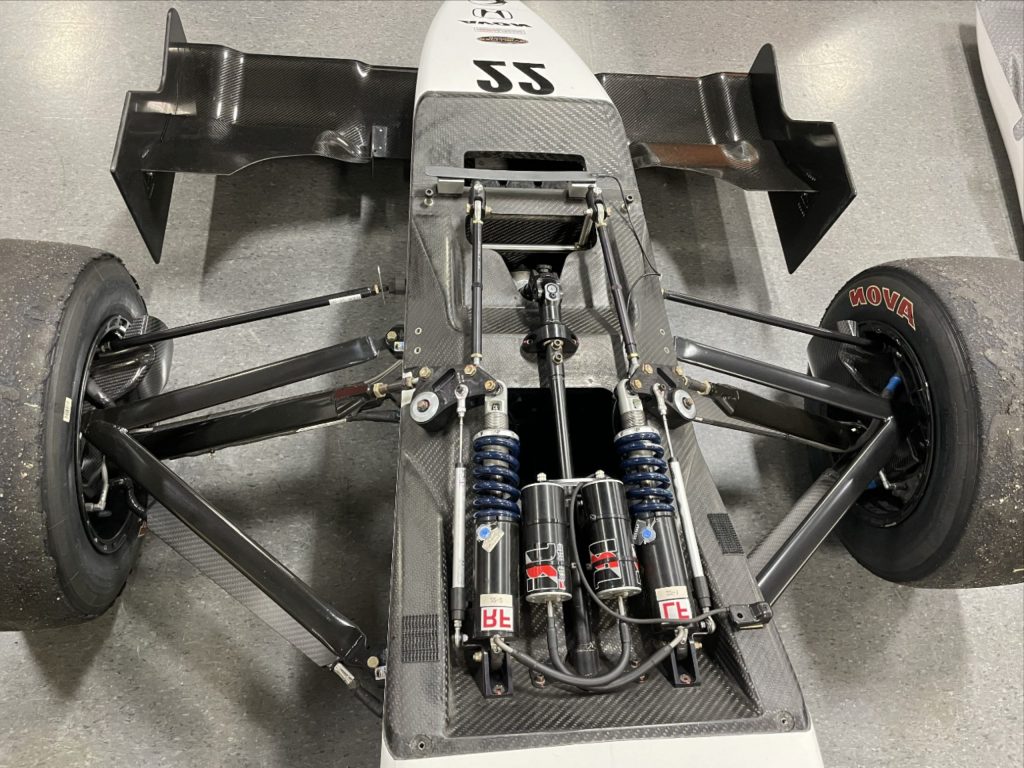

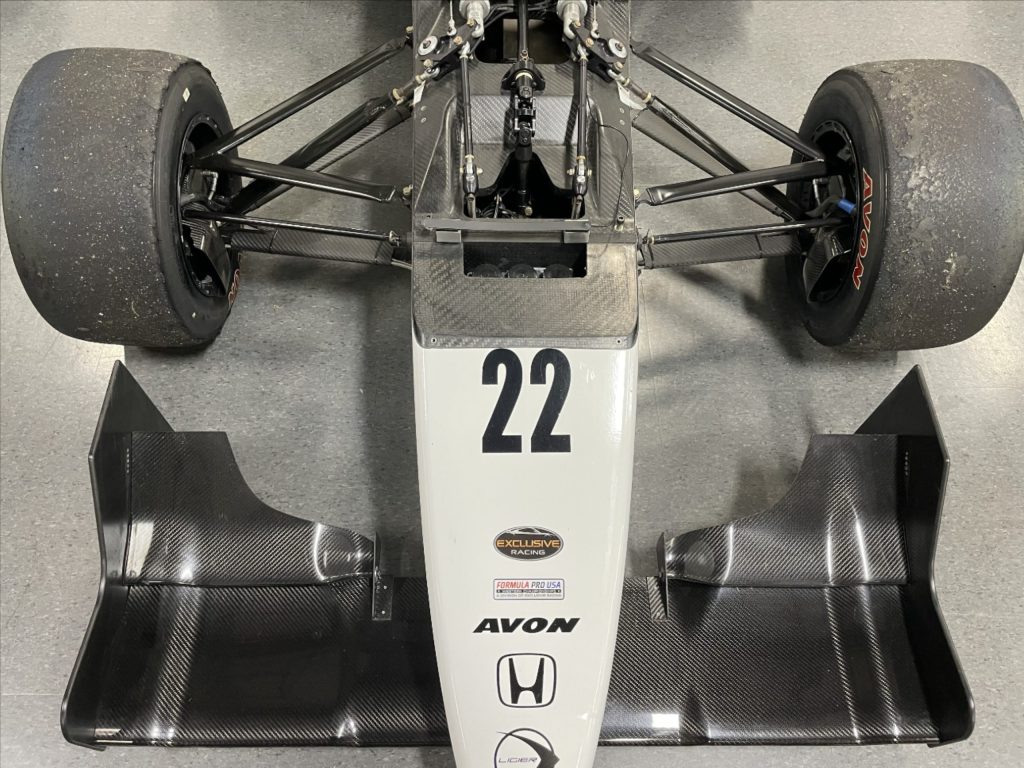

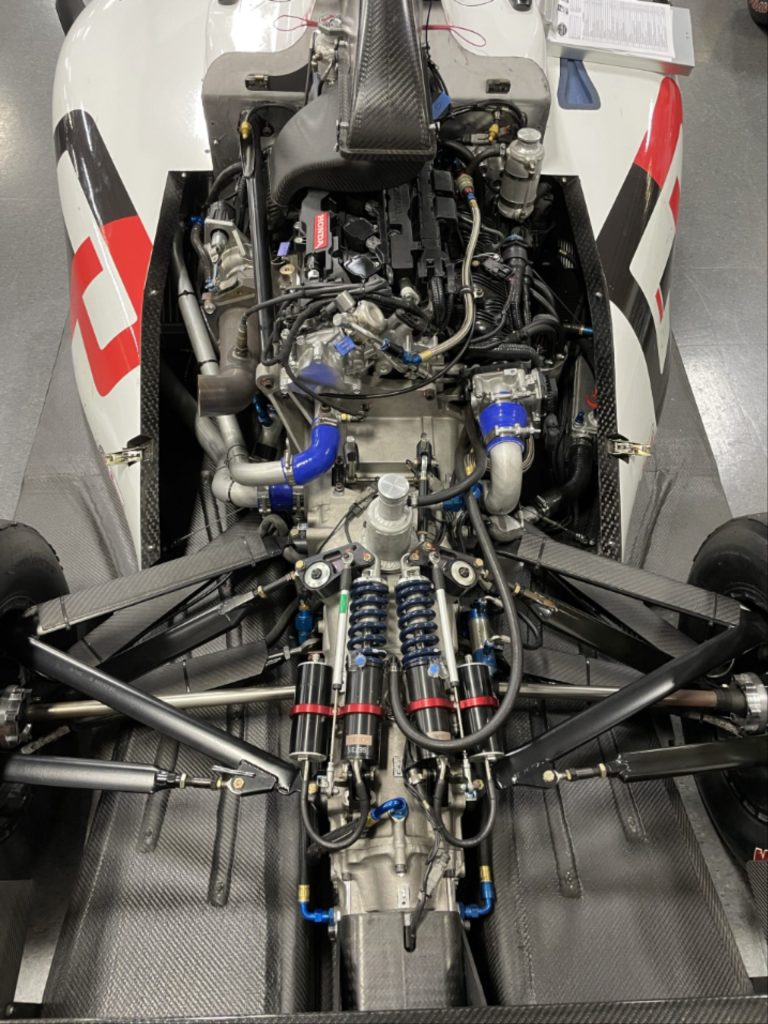

SUSPENSION

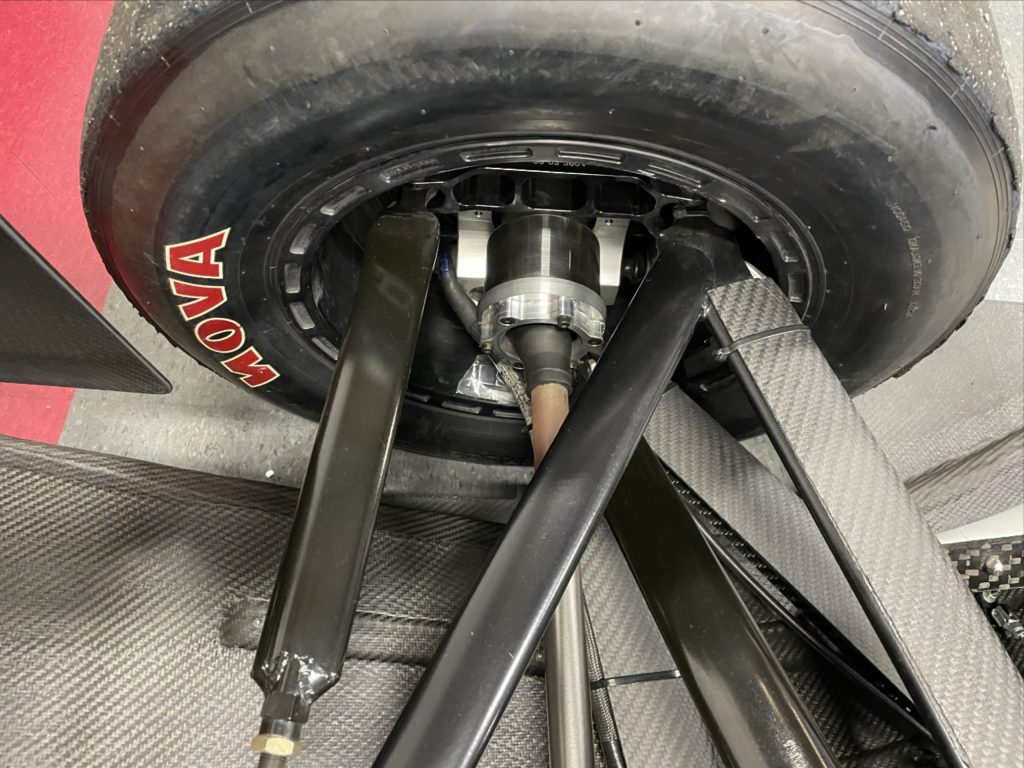

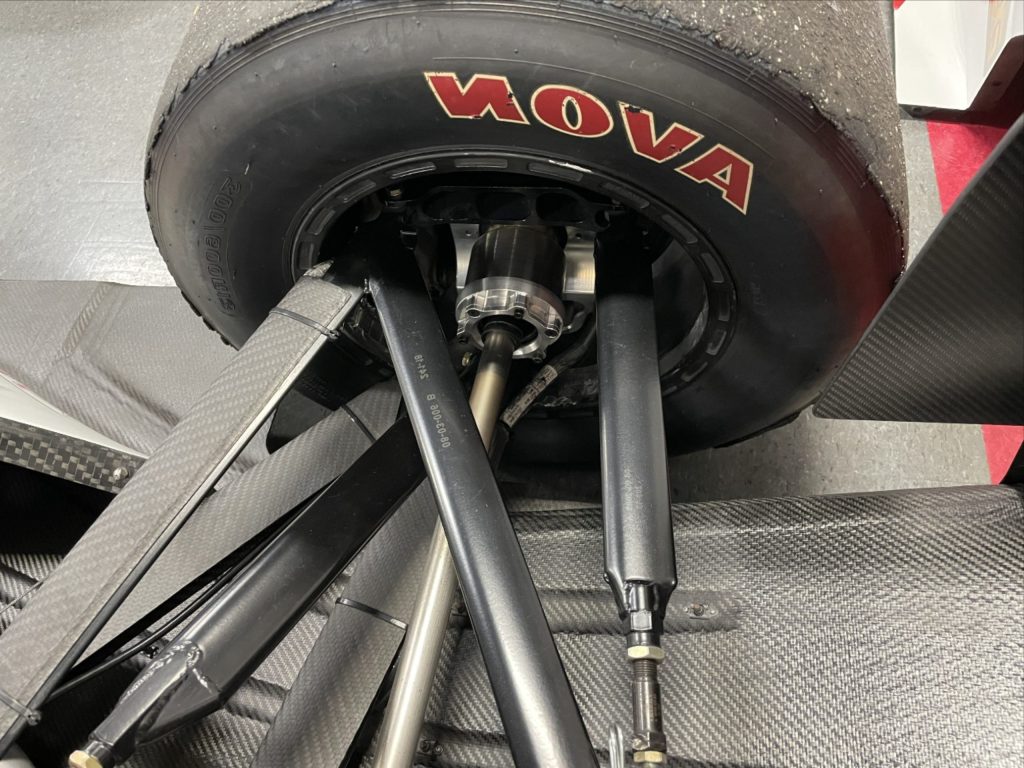

- Double wishbone, front and rear
- Pushrod adjustable ride front and rear

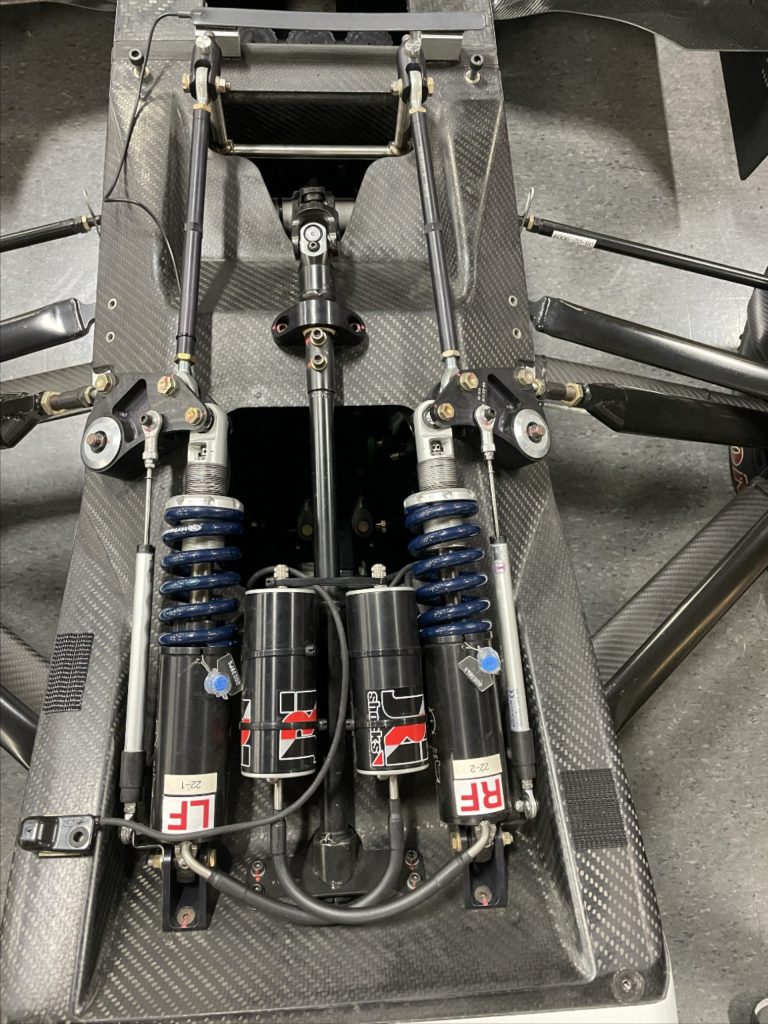

- JRi 2-way adjustable dampers
- Front and rear adjustable anti-roll bars
GEARBOX
- 6-speed sequential
- Pneumatic paddle shift

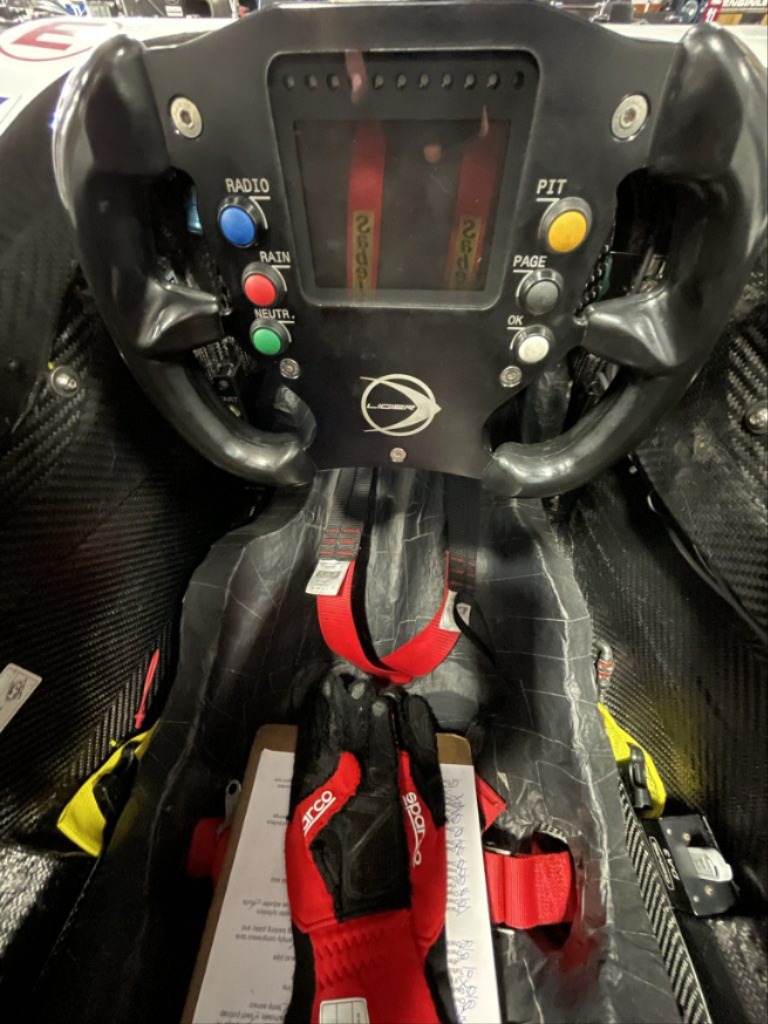

STEERING
- Rack and pinion steering

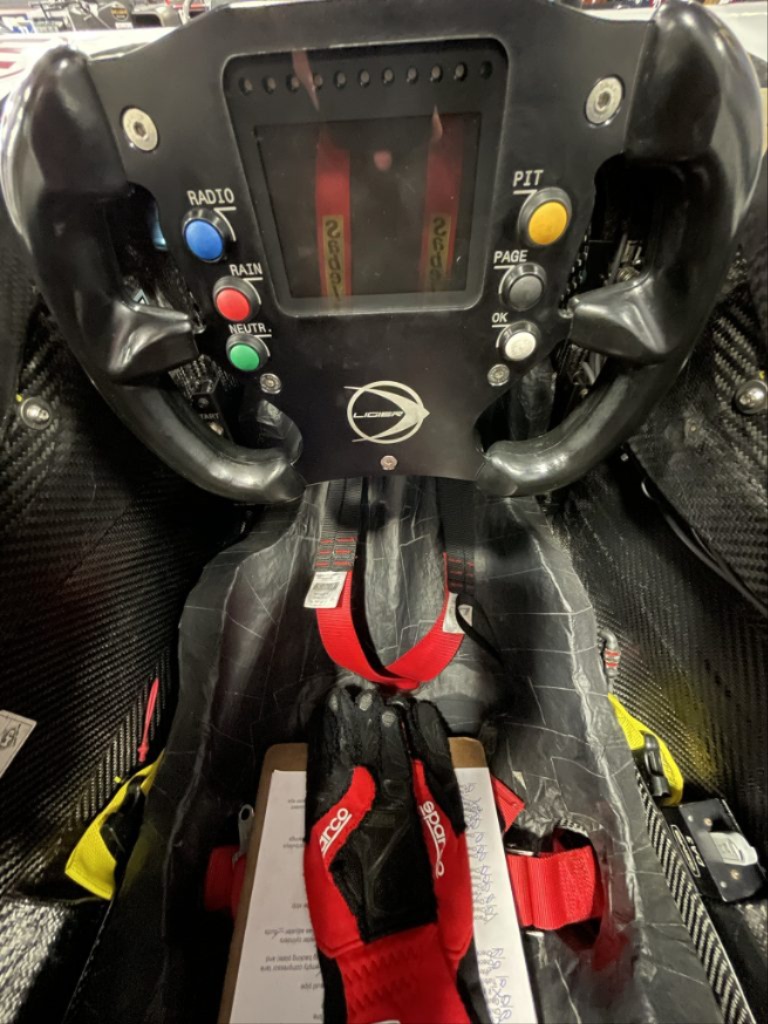

- Quick release steering wheel
- Safety collapsible steering column

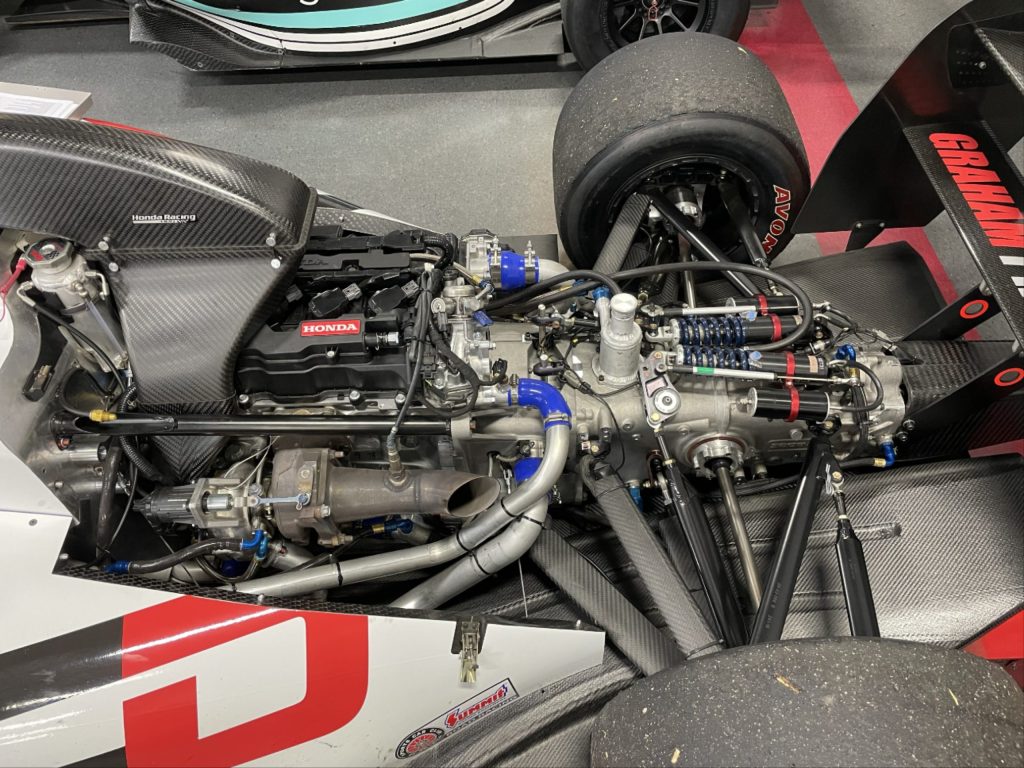

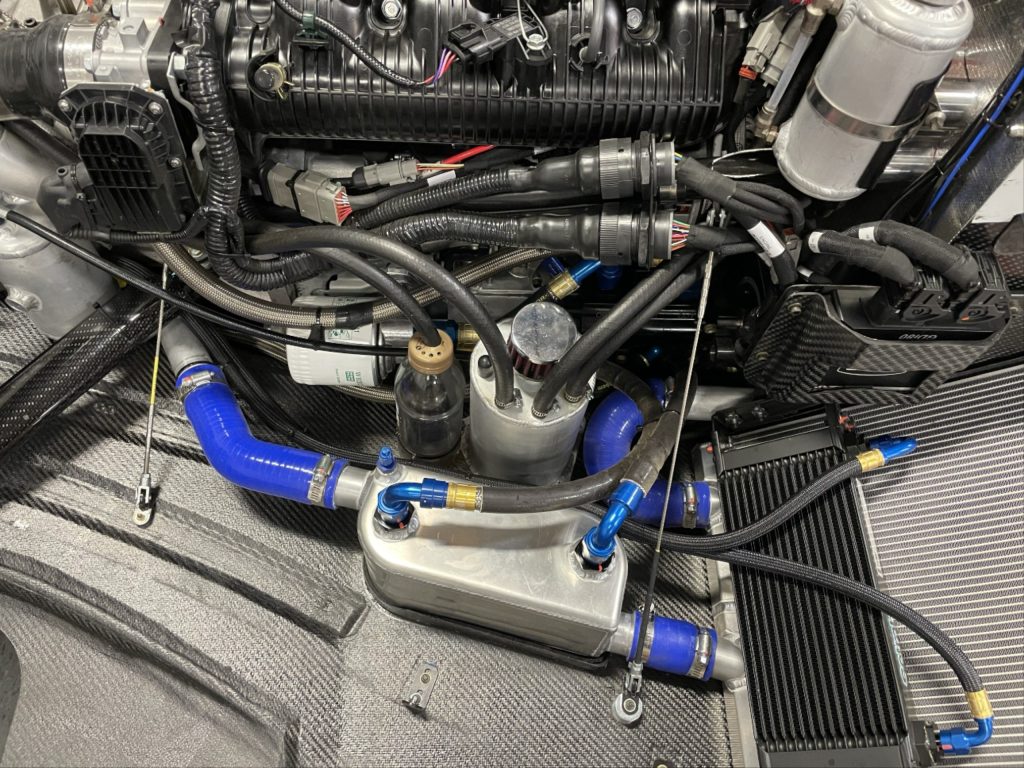

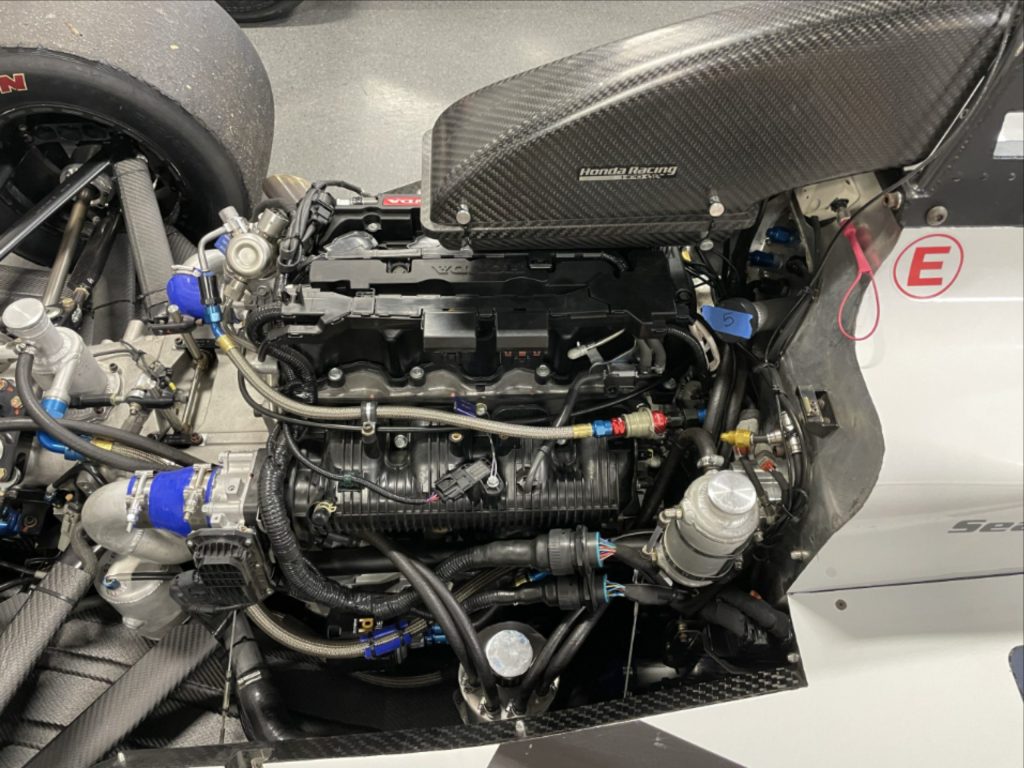

ENGINE

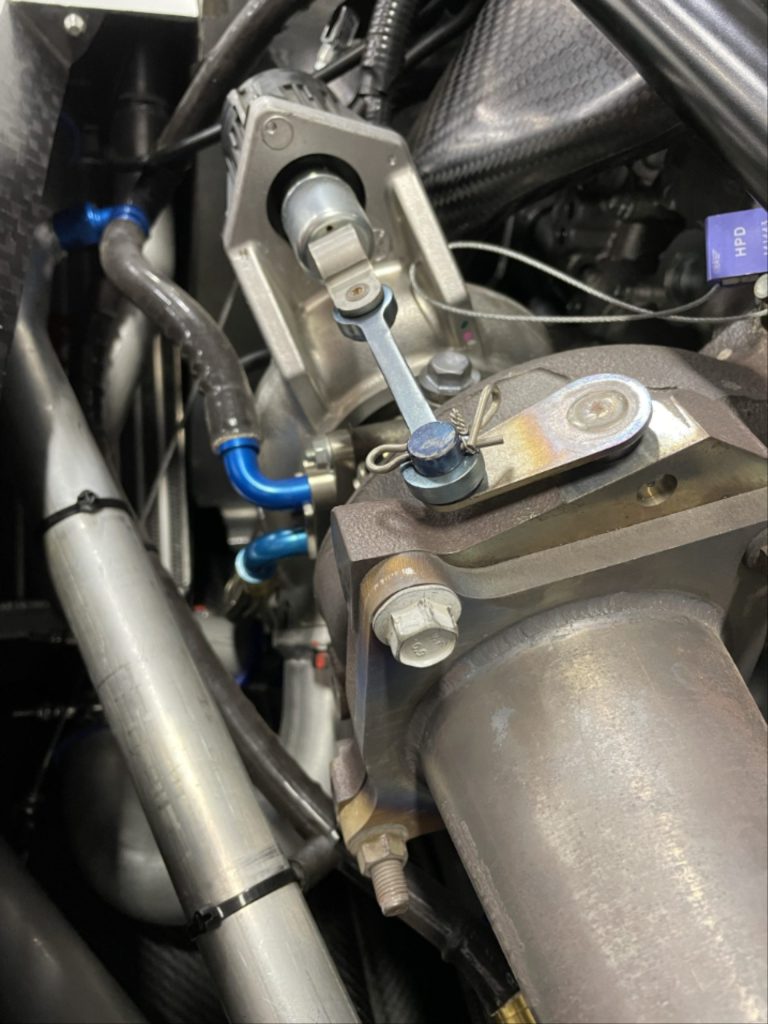

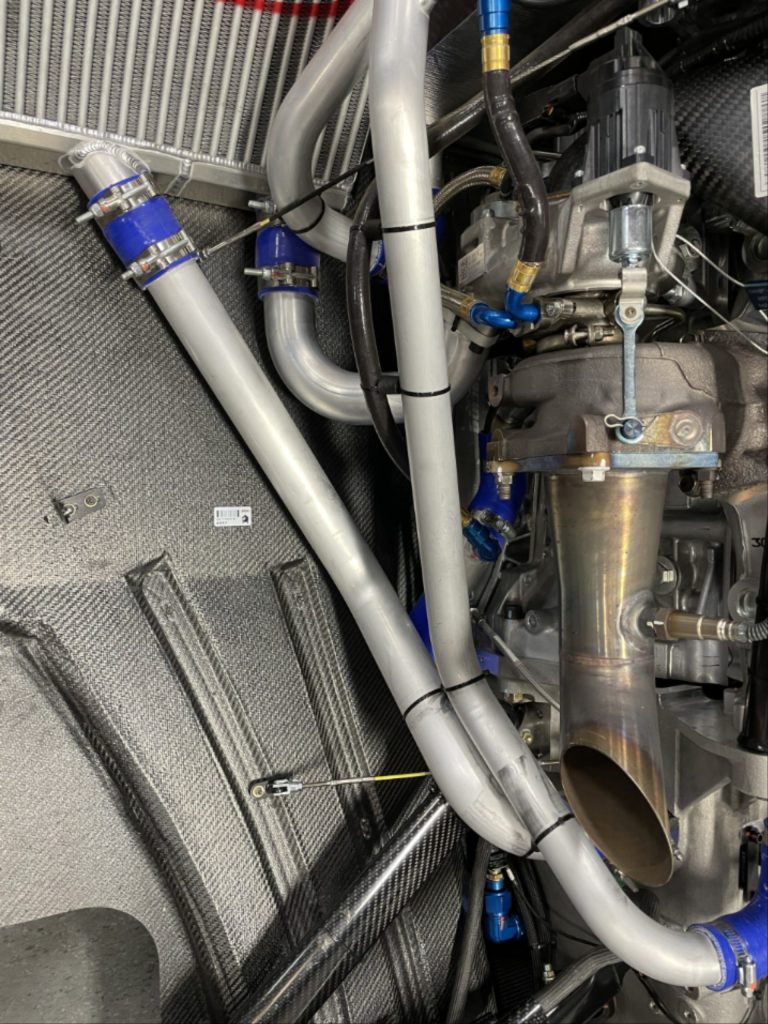

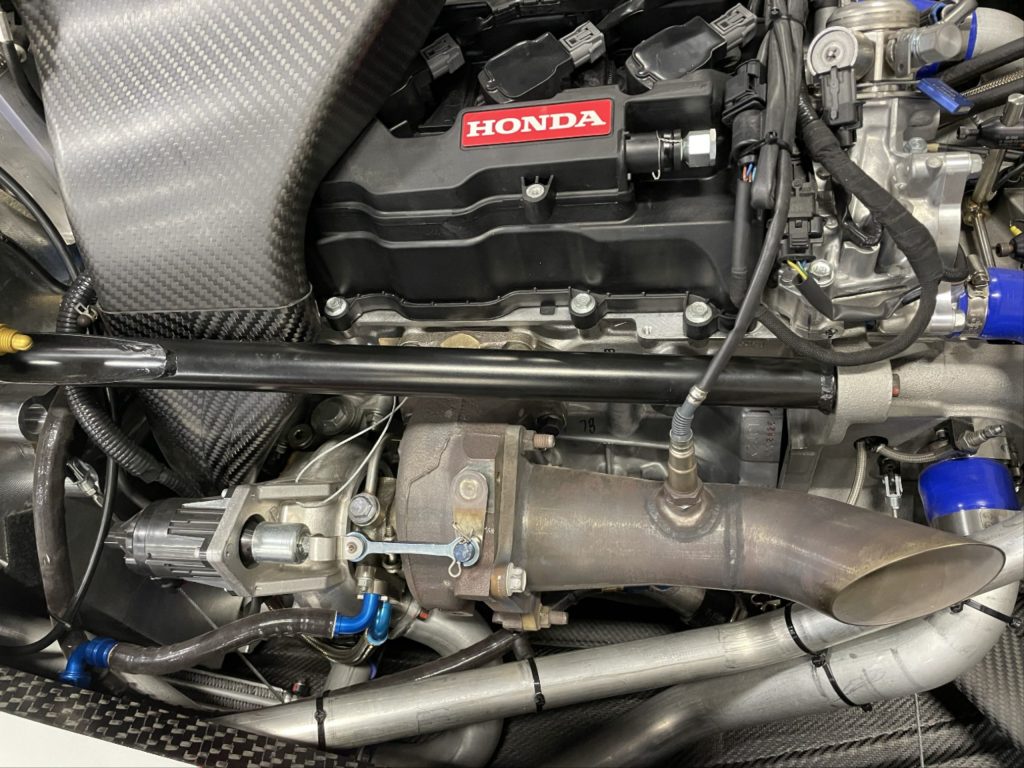

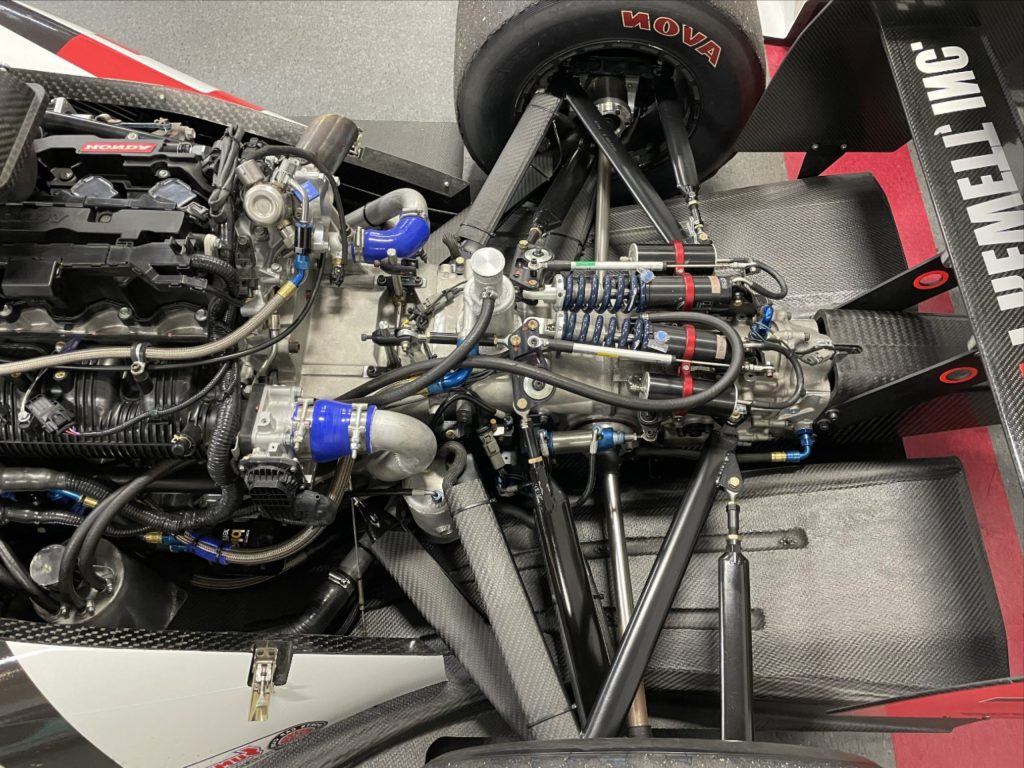

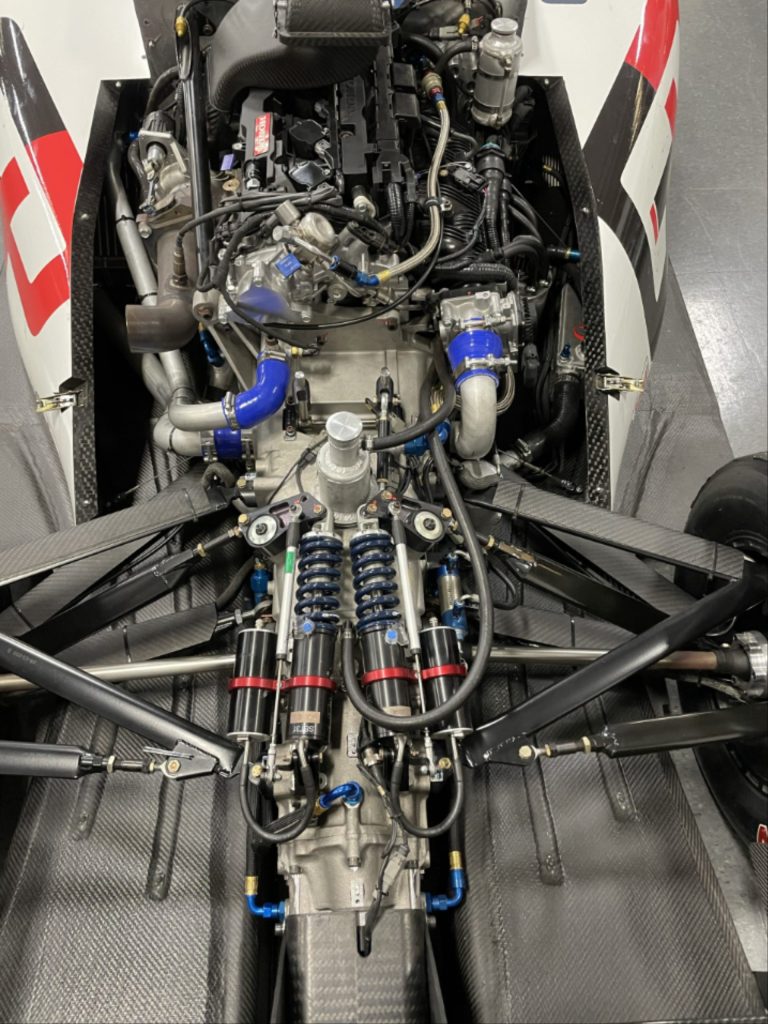

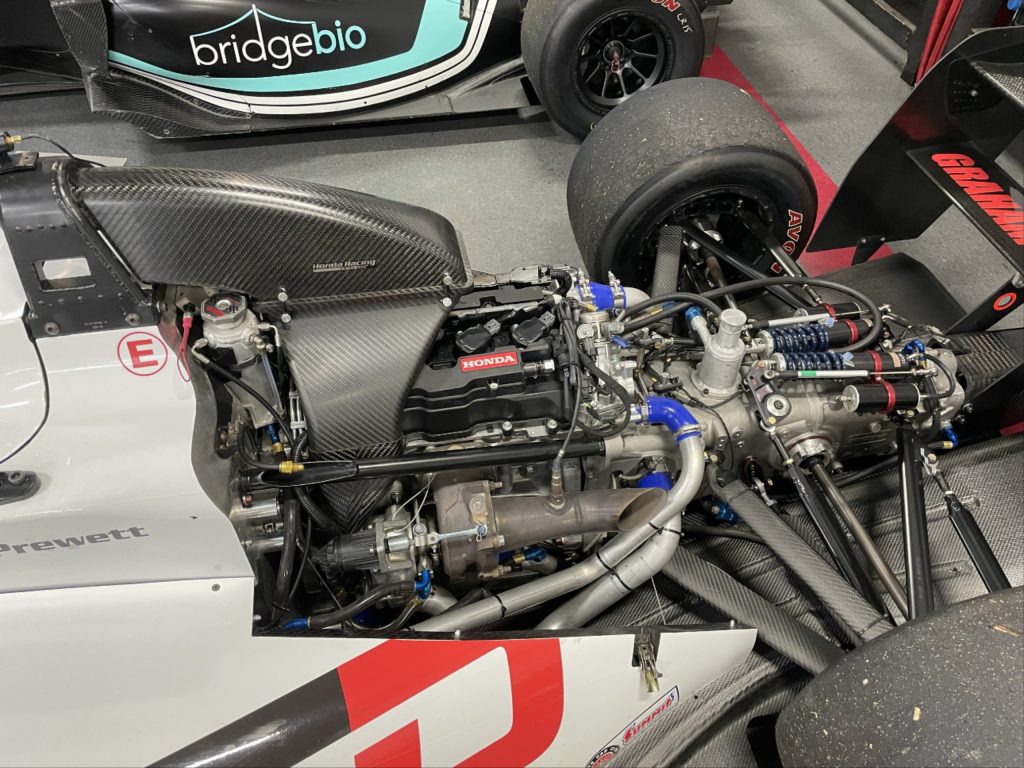

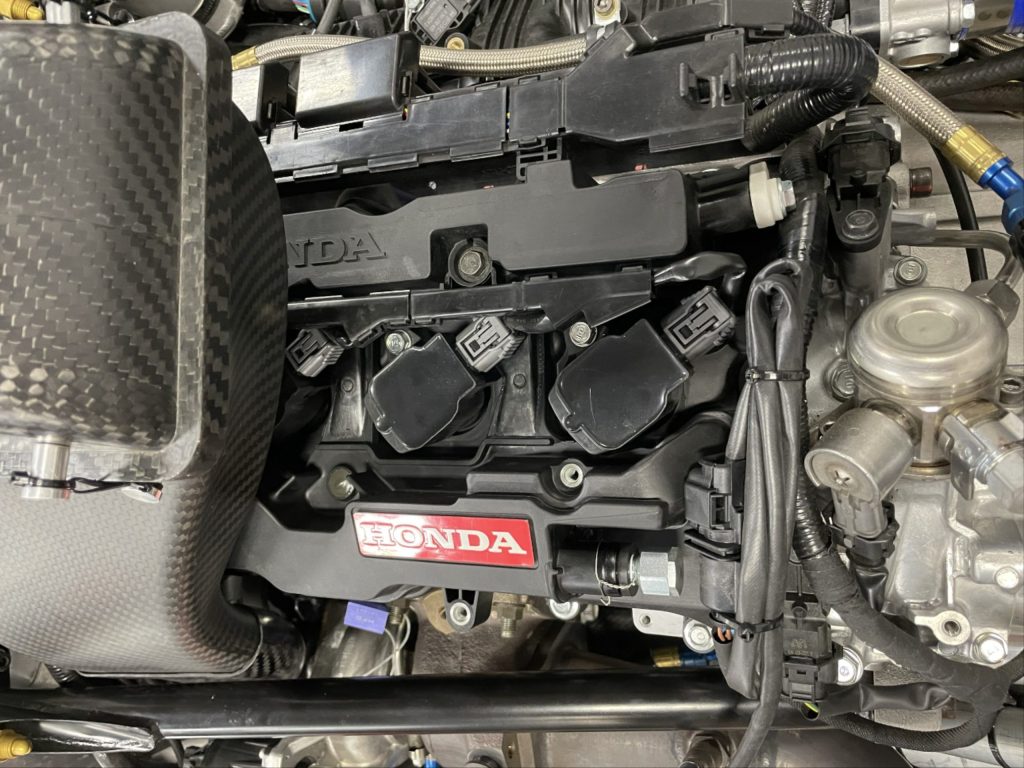

- Honda – 2,0-litre – 4-cylinder – 16-valve – Turbocharged – 303 hp (for the FR Americas Championship)
ELECTRONICS
- LED Backlit Color Display
- CAN controlled Power Management
- 3-axis plus yaw accelerometer
- Damper potentiometers
- High Speed 4GB Logger

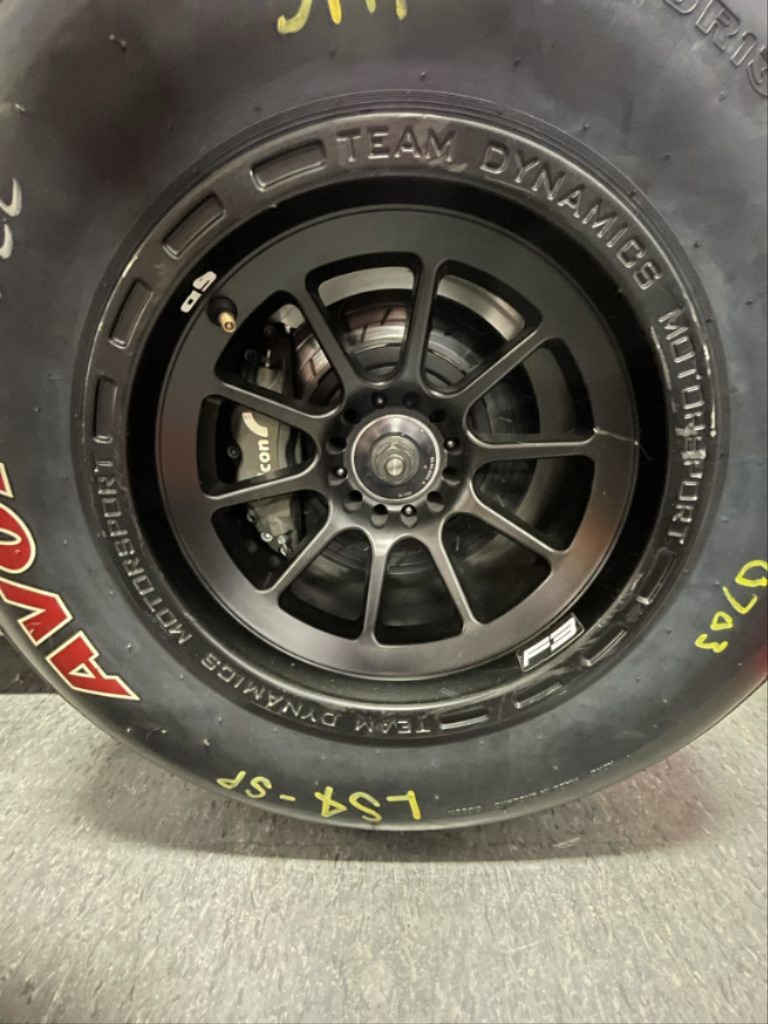

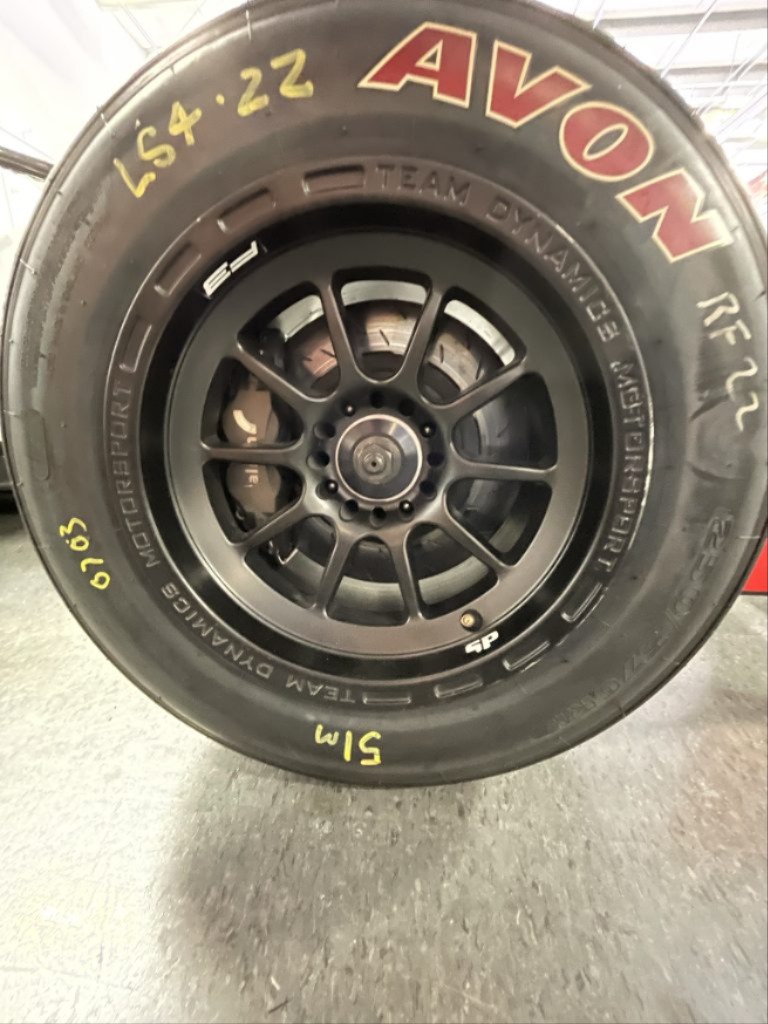

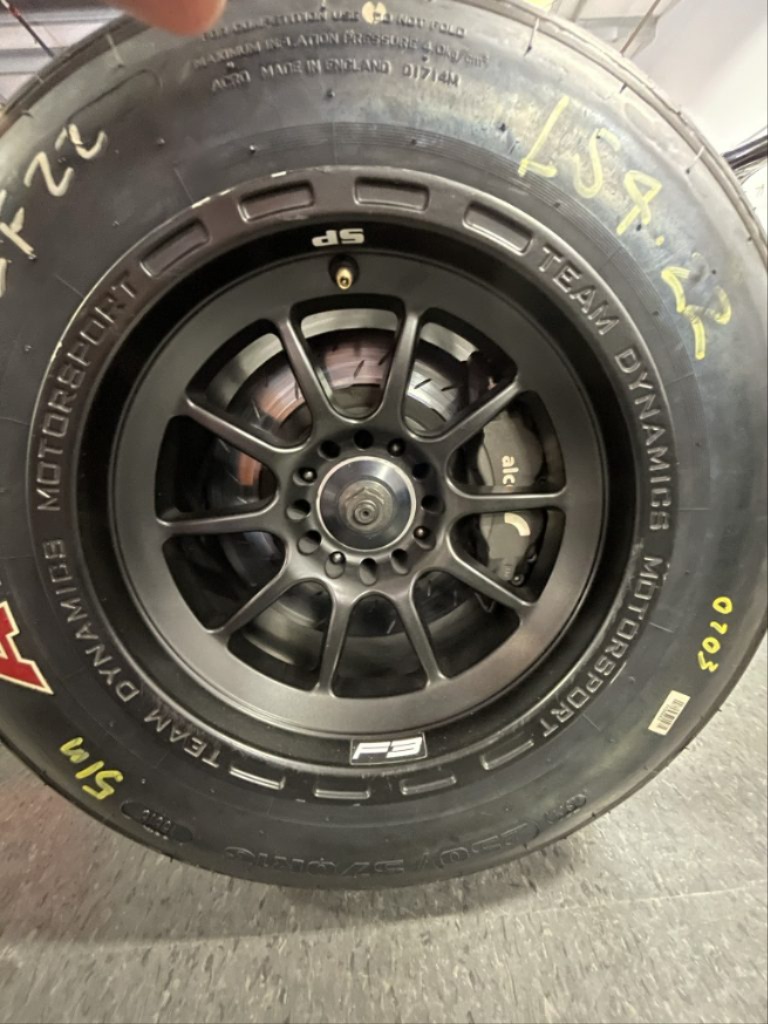

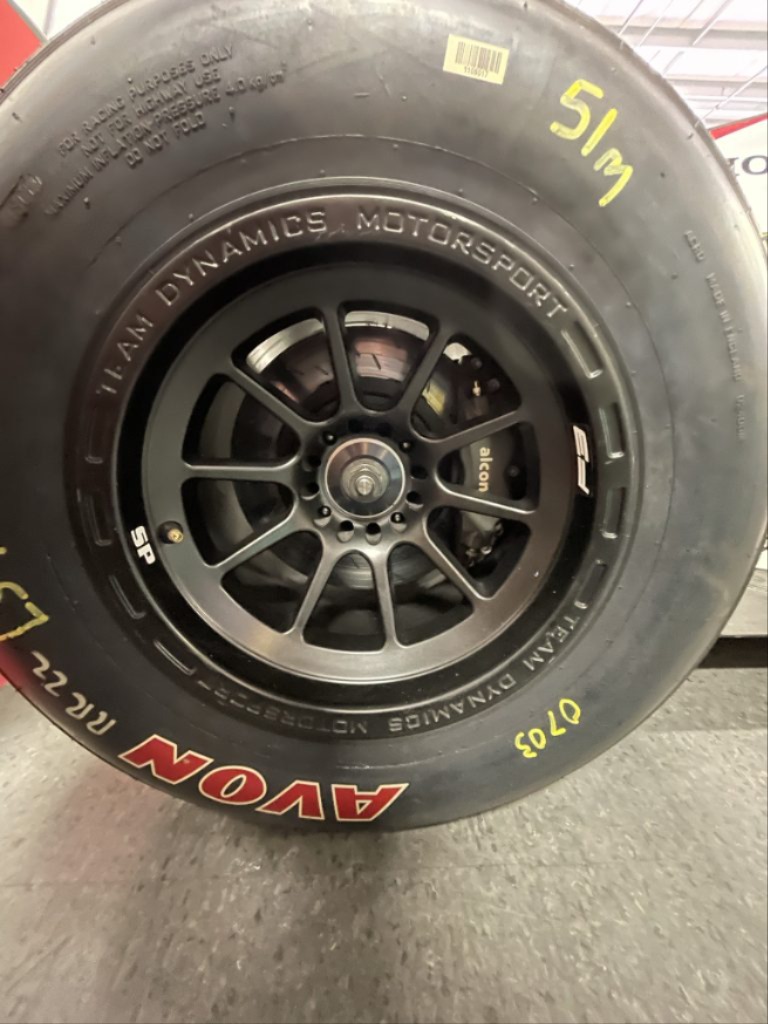

BRAKES
- Alcon 4 piston monobloc calipers
- PFC vented steel rotors

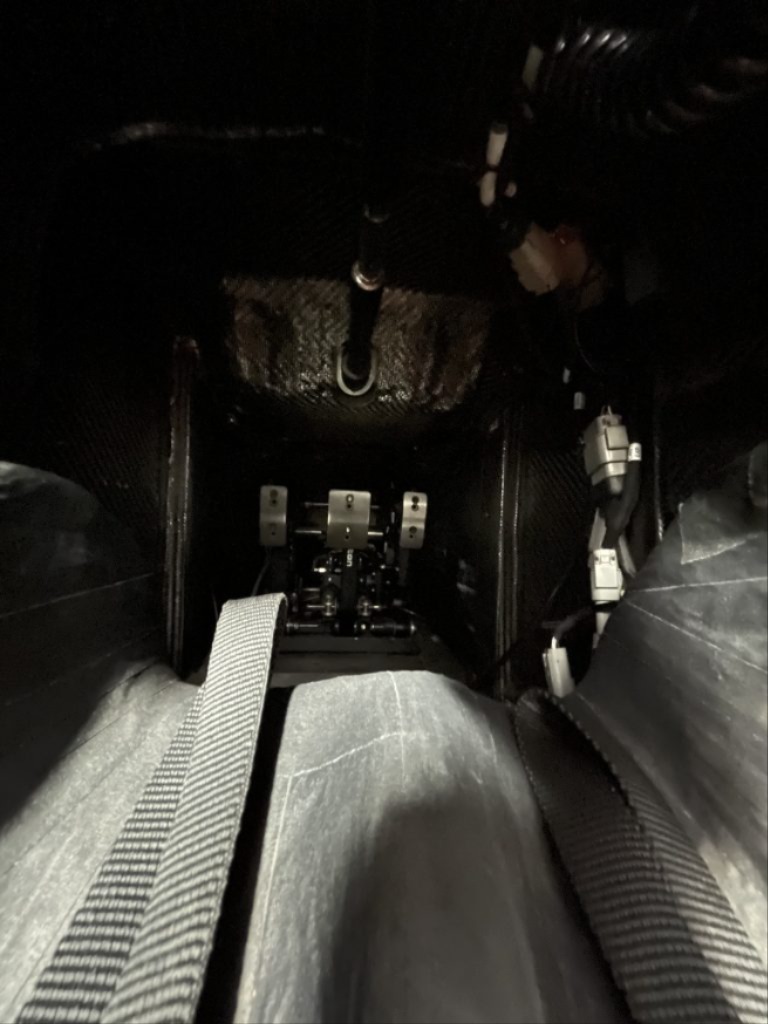

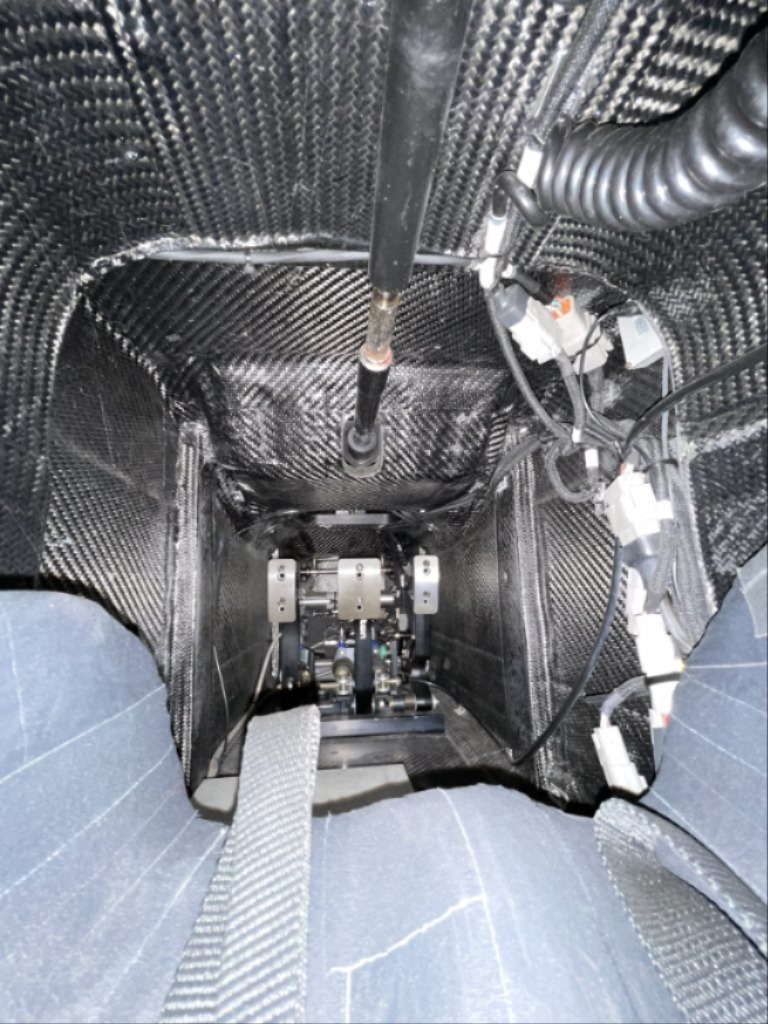

- Tilton adjustable pedal mounting assembly
SECURITY
- 2018 FIA front crash structure

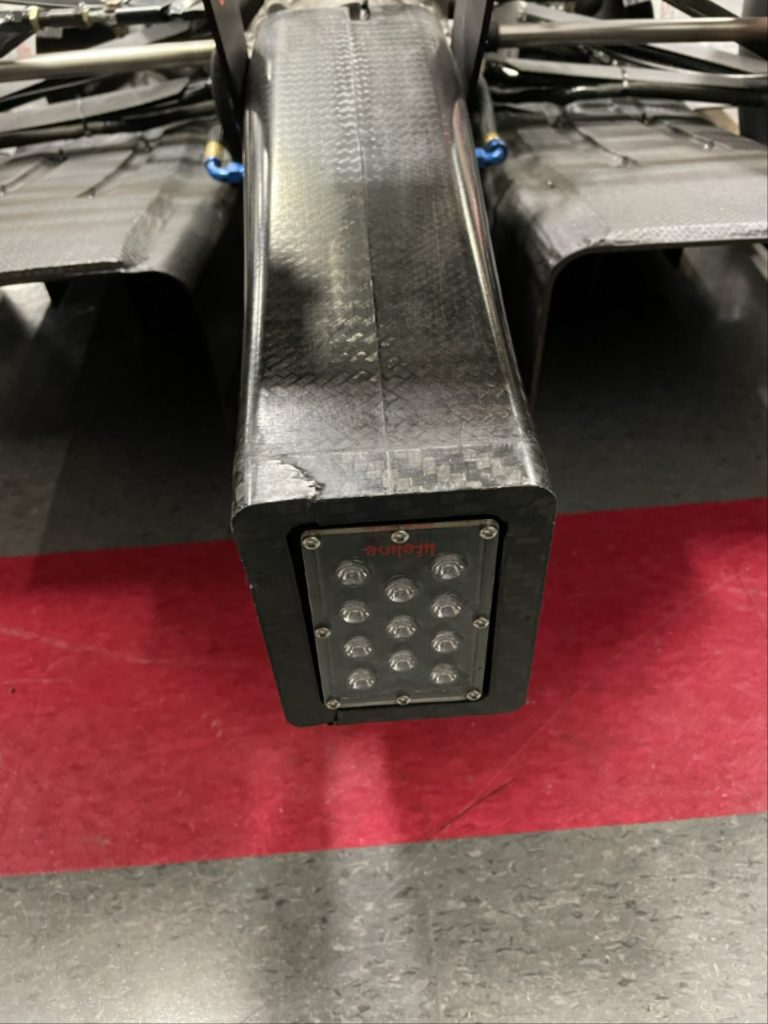

- 2018 FIA rear crash structure
- 2018 FIA side impact structures
- 2018 Cockpit Halo bar
- 2018 Side and front anti-intrusion panels

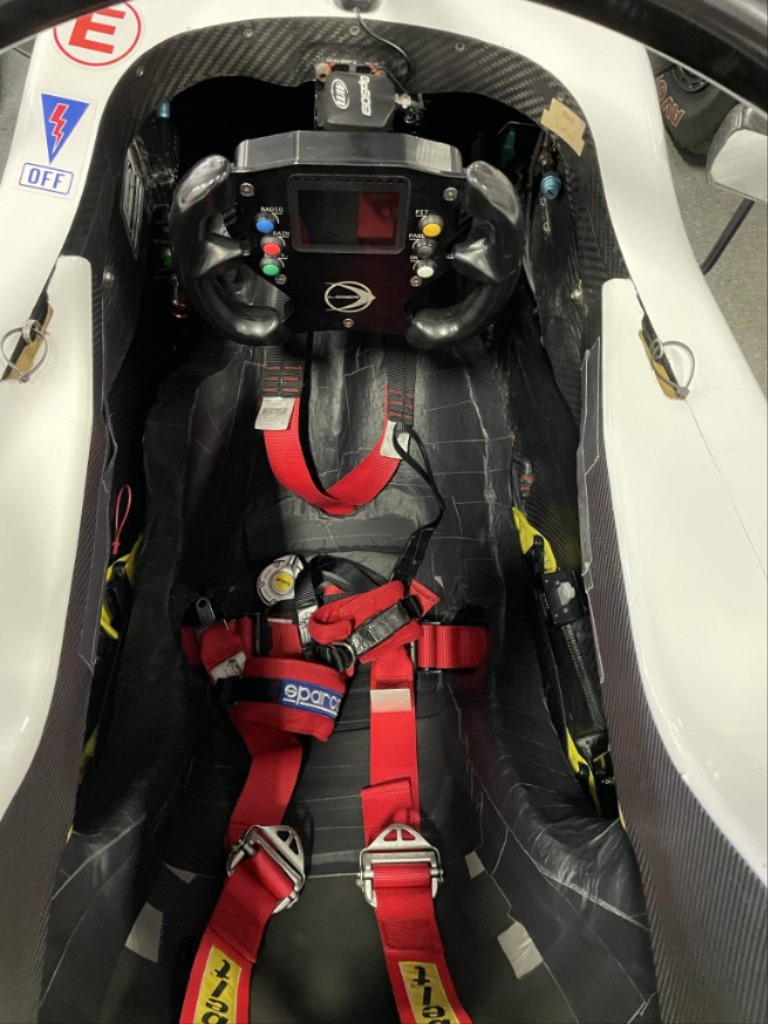

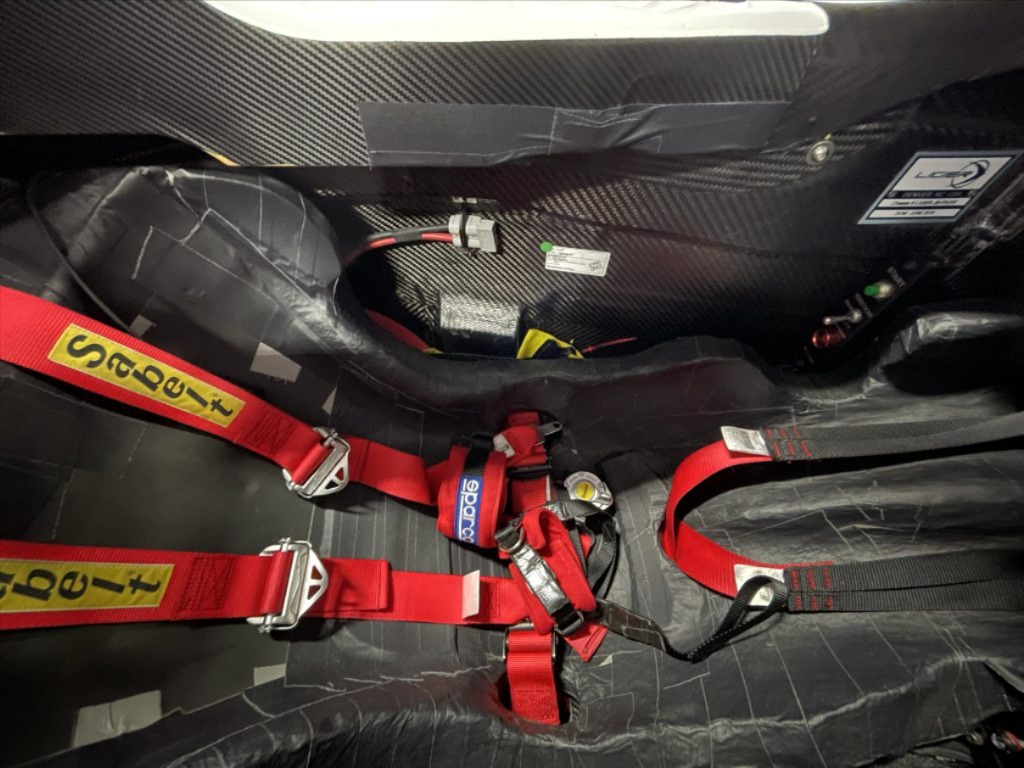

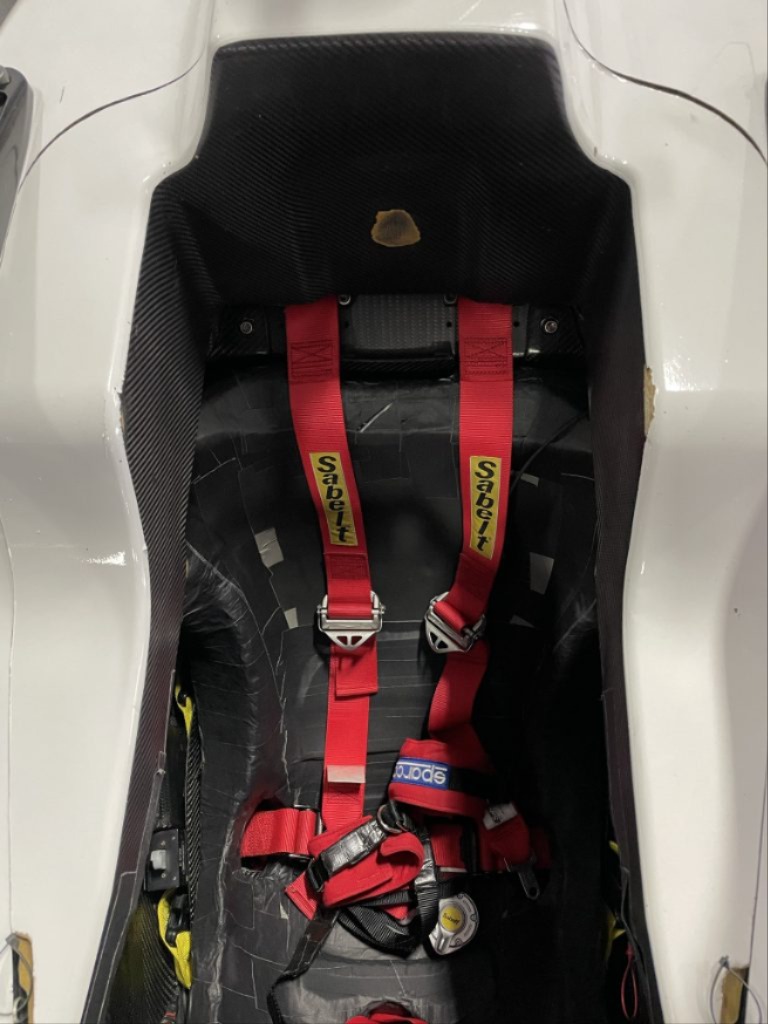

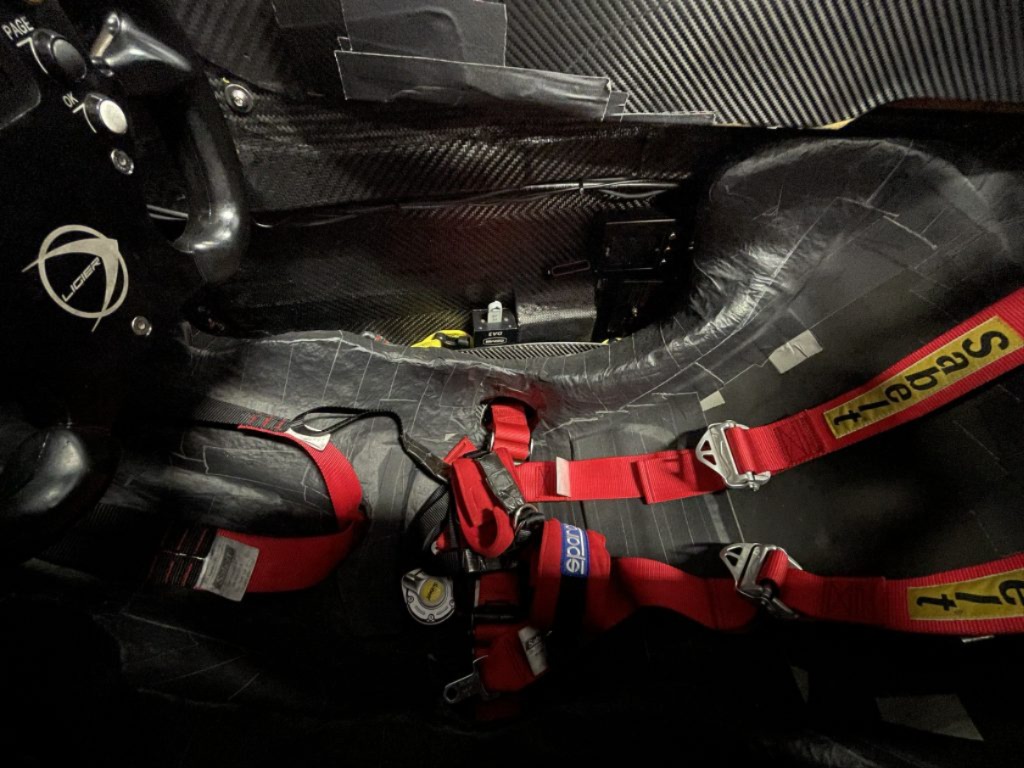

- 2018 FIA specification 6-point harness
- 6kJ Wheel tethers, 2 per corner
- On-board fire control system
- 2018 FIA Headrest compatible with HANS
- 2018 FIA-specification extractable seat
Modifications
History
- The car was purchased new in 2019
- One owner
- Car was run by a preeminent west coast race team
- Car was raced in the Formula Pro USA Western Championships
Current Issues
No known current issues
Seller Notes
Spares
- (1) spare set of wheels
- SmartyCam with Can integration
- Carbon convex mirrors

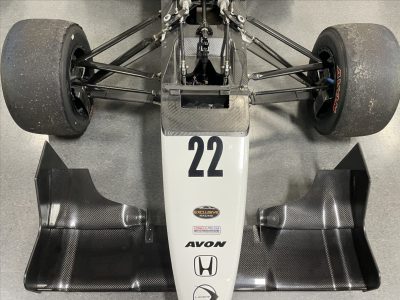

- Spare Nose with front wing (assembled)
- Spare Rear wing (unassembled)
- Assorted spring rates, front and rear anti-roll bars
