2023 Ligier JSF3

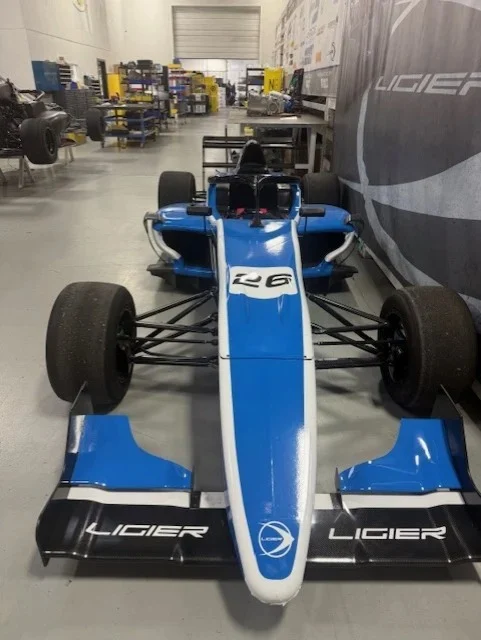

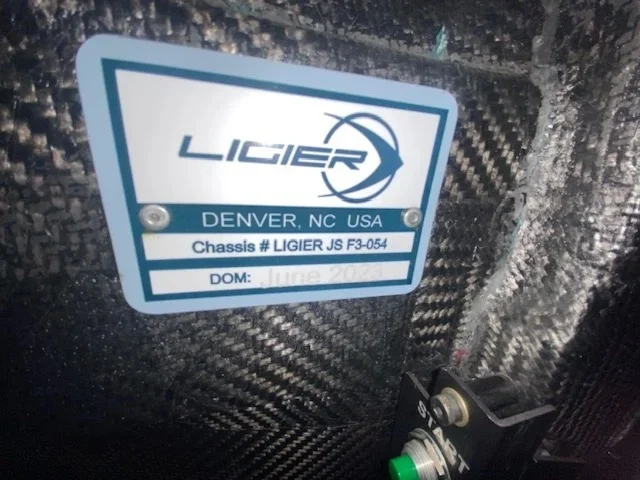

The last Ligier Gen 1 F3/Formula Regional car built by Ligier North America. Chassis JSF3-054 available for sale. Chassis is complete, and the car has never been raced and considered new. Car has been used as a static display at Ligier’s showroom in Magny Cours, France and wrapped in historic Ligier colors. JSF3-054 was produced in June of 2023. An engine is installed for display purposes only and will need to be negotiated as a separate transaction. Car is eligible for the Formula Regional Americas Championship and SCCA Formula Atlantic.

CHASSIS AND BODYWORK

• 2018 FIA F3R Specifications carbon composite monocoque
• Composite bodywork
• Fuel tank: 62 litres
• Brakes: Alcon 4 piston monobloc calipers
• PFC vented steel rotors
• Tilton adjustable pedal mounting assembly
• Length: 4895.5 mm
• Width- 1850 mm
• Wheelbase- 2920 mm
• Weight- 650 kg

ENGINE

• Honda 2L – 4-cylinder – 16-valve – Turbocharged
• Power output- 303 hp

GEARBOX

• 6-speed sequential gearbox
• Pneumatic steering wheel paddle-shift system

SUSPENSION

• Double wishbone front and rear
• Pushrod adjustable ride front and rear
• JRi 2-way adjustable dampers
• Front and rear adjustable anti-roll bars

ELECTRONICS

• LED Backlit Color Display
• CAN controlled Power Management
• 3-axis accelerometer plus yaw
• Damper potentiometers
• High Speed 4GB Logger

SAFETY

• Front crash structure
• Rear crash structure
• Side impact structures
• 2018 cockpit halo bar
• FIA specification 6-point harness
• Side and front anti-intrusion panels
• 6kJ Wheel tethers, 2 per corner
• On-board fire control system
• HANS compatible headrest
• Extractable seat

N/A

Chassis is complete, and the car has never been raced and considered new. Car has been used as a static display at Ligier’s showroom in Magny Cours, France and wrapped in historic Ligier colors. JSF3-054 was produced in June of 2023.

N/A

An engine is installed for display purposes only and will need to be negotiated as a separate transaction.
